1. Precise and clean trimming, no damage to filter elements

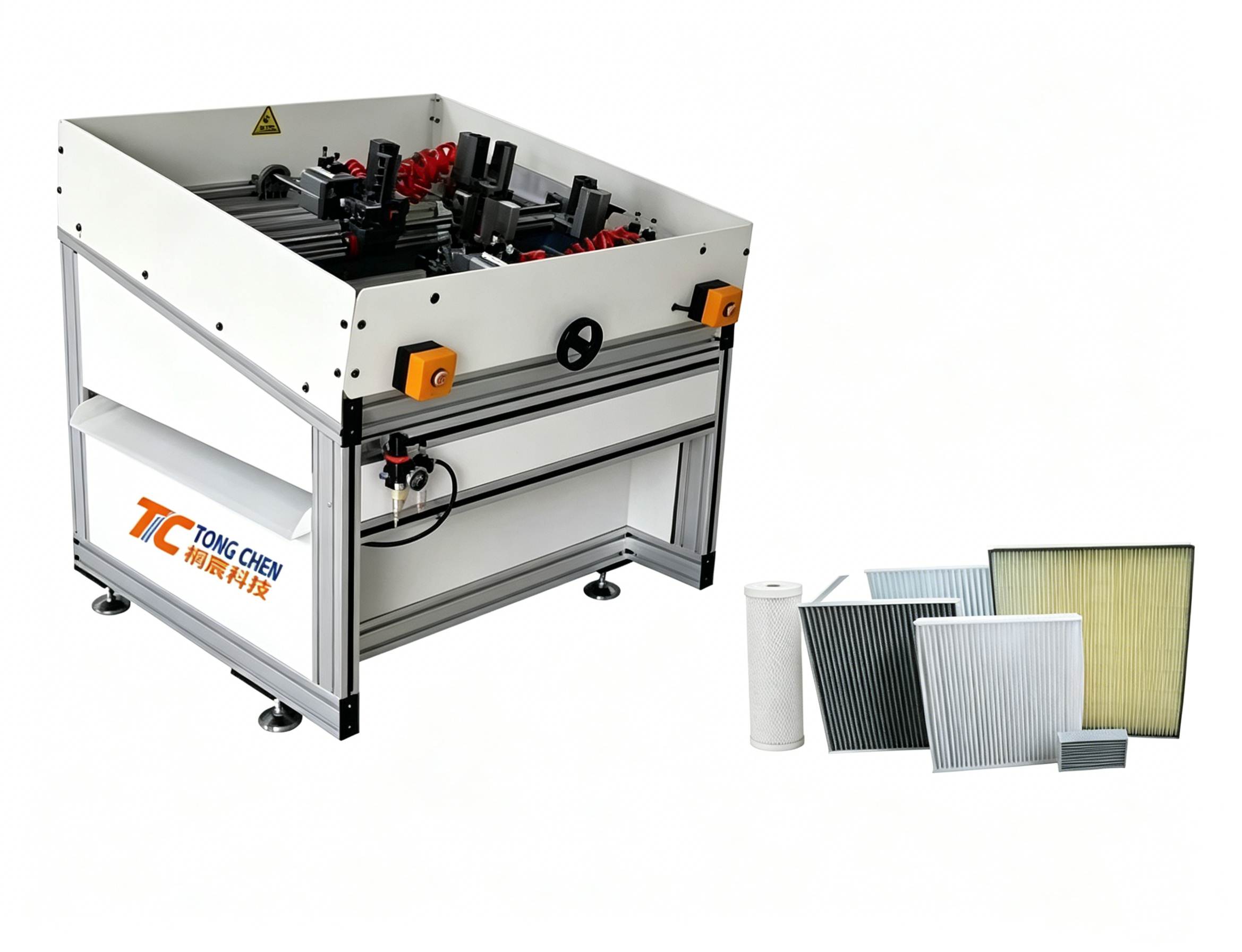

Equipped with a 65mm high-precision blade, the equipment features sharp cutting, stable operation and flat trimming sections. It can completely remove residual edge strips without scratching, squeezing or deforming the filter element body. The finished filter edge is smooth and neat, with uniform overall size, which fully meets the high-precision assembly standards of air conditioning equipment and avoids air leakage and poor filtration caused by unqualified edges.
2. Wide processing range, strong compatibility
The equipment supports maximum trimming size of 750mm in length and 650mm in width, covering the size specifications of most conventional household and commercial air conditioning filter elements. Whether it is a small-size household filter screen or a medium-size industrial air conditioning filter element, it can complete one-time four-sided trimming, with strong versatility and wide application range, reducing the cost of purchasing multiple equipment for different products.
3. Stable and energy-saving operation, low maintenance cost
Adopting standard 220V/50Hz civilian industrial power supply, the equipment has low power consumption, stable operation and no abnormal noise during working. The whole machine weighs 300kg, with a solid and stable fuselage structure, which effectively avoids vibration displacement during high-speed operation and ensures long-term consistent processing accuracy. The blade has strong durability, simple later maintenance and low replacement cost, greatly reducing the daily operation cost of the production line.
4. Compact structure, easy to deploy
With overall dimensions of 1250*1100*1500mm (L×W×H), the equipment has a compact and reasonable layout, does not occupy excessive production space, and is convenient for workshop placement and production line docking. It can be used independently or connected with upstream and downstream filter production equipment to form an automated production process, effectively improving the overall production efficiency.
