Why Do Tall-Pleat PTFE Filters Suffer from Springback?

Introduction

In mass production of PTFE filter pleating, pleat springback is the most common and yield-impacting pain point — especially for products with pleat heights above 50mm. Freshly folded filter media often relaxes, loses height, or even becomes unassembled after sitting for hours. Many factories simply crank up the heating temperature, which instead causes membrane shrinkage and micropore damage.

In reality, taller pleats create far stronger bending internal stress, placing stricter requirements on heat-setting temperature, dwell time and heating uniformity. This blog focuses solely on springback in tall-pleat PTFE production, breaks down the root causes, and provides actionable parameter tuning solutions to stabilize pleat geometry and reduce rework rates.

1. Why Taller Pleats Are More Prone to Springback

PTFE has a highly stable molecular structure and strong elasticity. Mechanical bending creates internal stress; heat setting works by relaxing molecular chains, releasing bending stress, and locking the fold angle upon cooling. The taller the pleat, the more severe the problem, for two core reasons:

This is exactly why low-pleat products run stably with standard parameters, but quality issues appear frequently as soon as you switch to taller pleats.

2. 3-Step Precision Tuning Method for Tall-Pleat Heat Setting

For the 8–150mm pleat height range, you can adjust parameters stepwise following the rules below — no blind temperature increase needed, balancing both forming stability and membrane performance.

3. 3 Common Mistakes in Tall-Pleat Heat Setting

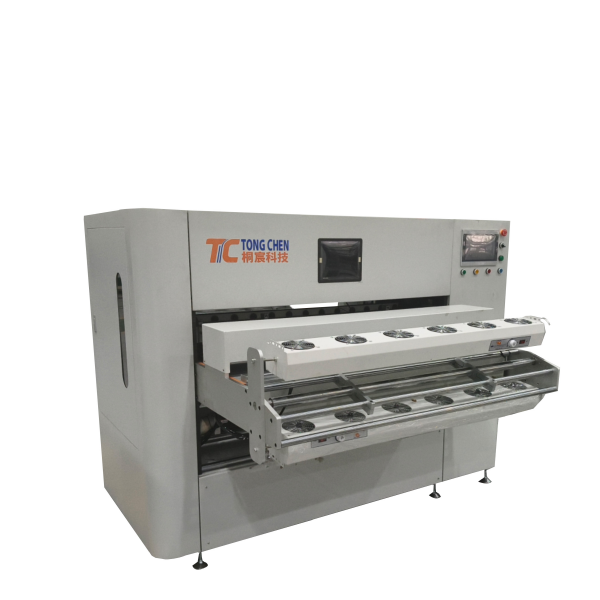

4. How TCZZ150-1300 Ensures Stable Tall-Pleat Forming

Our TCZZ150-1300 full-automatic servo blade pleating production line is purpose-built with hardware configurations to solve tall-pleat forming challenges in PTFE media, reducing tuning difficulty and springback risk from the source:

• • 3 independent heating discs on both upper and lower plates, 6kW total power, full-width temperature difference controlled within ±3°C for uniform and thorough fold root heating
• • 10-inch touchscreen supports one-click parameter templates by pleat height, with synchronized matching of temperature, speed and blade angle — no repeated manual adjustment needed
• • Extended hard chrome plated output table provides sufficient slow-cooling space for pleats to fully stabilize before unloading
• • Full servo electronic cam controls blade opening/closing angle, delivering precise pressing force even for tall pleats without damaging the fold root membrane

Conclusion

Springback in tall-pleat PTFE filters is essentially a mismatch between bending internal stress and heat-setting energy. You do not need to pursue extreme temperatures. By matching temperature stepwise to pleat height, slowing down line speed accordingly, and ensuring double-sided uniform heating, you can achieve stable permanent forming without compromising membrane performance.

If you have been struggling with springback issues in tall-pleat PTFE production, our technical team can provide targeted equipment parameter tuning solutions. Feel free to contact us for details.
