Everything About Modular Filter Paper Pleating & Gluing Production Lines
Apr 29, 2026
"In filter production, ROI and reliability define success. Our HEPA Mini Filter Pleating Machine turns precision for high-temperature media into real-world results: less waste, more output, and greater profits for your clients. This isn’t just a machine—it’s a strategic asset built to scale your quality and secure your growth."
Nina Peng - Operations Manager
What Is a Modular Filter Paper Pleating & Gluing Line?

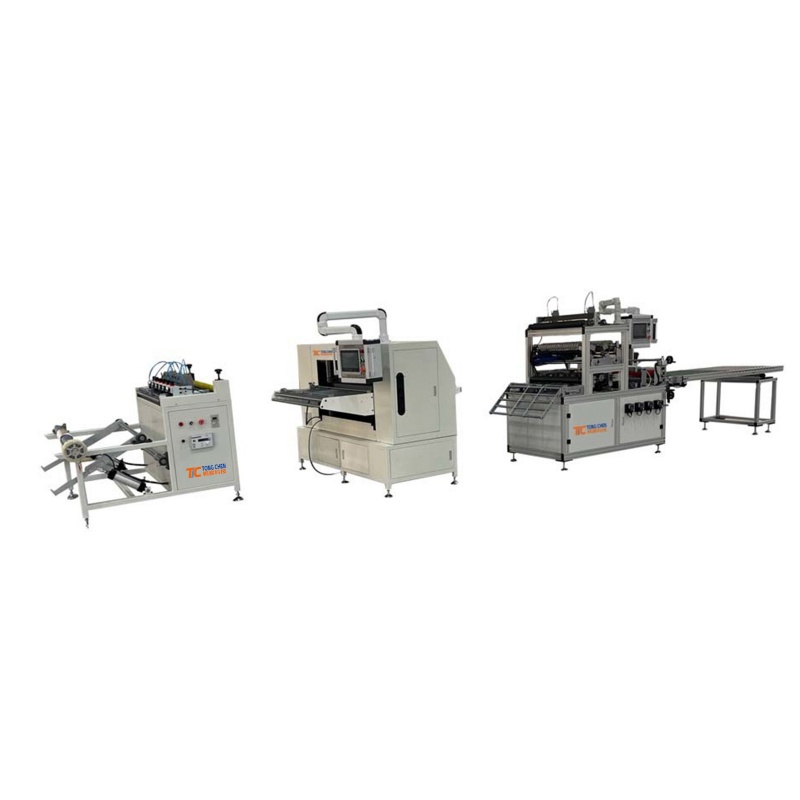

A modular filter production line is a set of independent but fully synchronized machines designed for filter paper forming.
Our system includes three professional units:
Pre‑slitting & paper feeding unit
Servo air filter pleating equipment
Automatic hot‑melt gluing machine
This structure ensures high stability, easy maintenance, and strong flexibility for industrial and automotive filter manufacturing.
Core Technical Knowledge You Need to Know
1. Why Servo Control Is Important for Pleating?
Servo motors provide closed‑loop precision control for pleating blades.
✔ Stable pleat height and spacing
✔ High speed up to 280 folds/min
✔ Wide adjustment range: 5–70mm
✔ Less wear, longer service life
2. Why Heat Setting Is Necessary?
Heat setting eliminates internal stress of filter paper after folding.
✔ Temperature range: room temperature ~ 260°C
✔ Prevents pleat rebound and deformation
✔ Improves glue adhesion and stability
✔ Ensures filters keep shape in high‑temperature environments
3. Why Synchronized Control Matters?
All three units run at matched speed via PLC and infrared monitoring.
✔ No paper stretching or wrinkling
✔ Accurate alignment between pleating and gluing
✔ Higher product consistency
✔ Lower defect rate
4. Advantages of Modular Design
✔ Easier maintenance and repair
✔ Flexible upgrade for new products
✔ Stable performance for each process
✔ Lower risk of full‑line shutdown
✔ Longer lifespan for core components
Frequently Asked Questions (FAQ)
Q1: What materials can this line process?
It supports:
● Filter paper
● Fiberglass media
● Non‑woven fabric
● Composite filter materials
Q2: What filters can you produce?
● Automotive air, oil, fuel filters
● Industrial filters for compressors & generators
● HVAC and air purification filters
● Various industrial filter elements
Q3: What is the processing range?
● Feeding width: 25–850mm
● Pleat height: 5–70mm
● Feeding speed: 0.5–25m/min
Q4: How does the gluing system ensure precision?
● 52 independently controlled nozzles
● Supports continuous, intermittent, single/double‑sided, staggered gluing
● Real‑time synchronization with pleating
● Glue dots accurately on pleat peaks/valleys
Q5: What are the key benefits for factories?
● High stability & low defect rate
● Labor saving & high efficiency
● Easy operation via touch screen
● Fast production changeover
● Long service life & low maintenance cost
Q6: Is this line suitable for small‑batch and mass production?
Yes.
It supports fast parameter adjustment and is ideal for both customized small batches and large‑scale mass production.
Conclusion
Our Fully Automatic Servo Blade Folding & Gluing Production Line uses servo control, synchronous drive, heat setting and independent gluing systems to provide a stable, efficient, and long‑lasting solution for filter manufacturers.
If you are looking for a reliable filter forming production line, this modular system is your optimal choice.
