High-Efficiency HVAC Manufacturing: Introducing the 1300mm Fully Automatic Non-Separator Filter Production Line

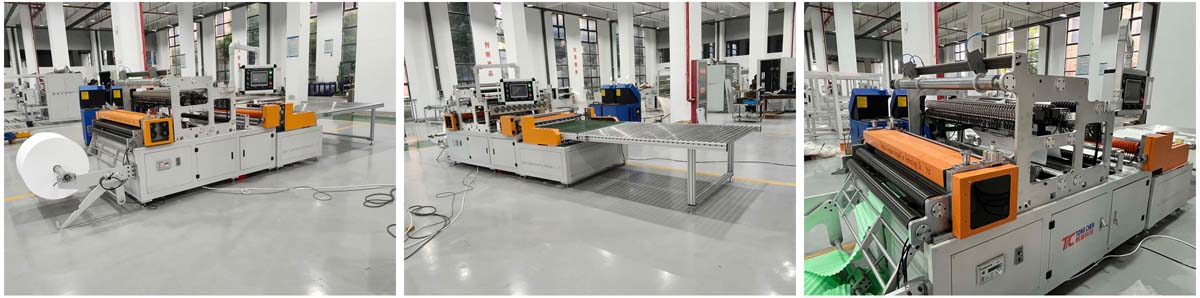

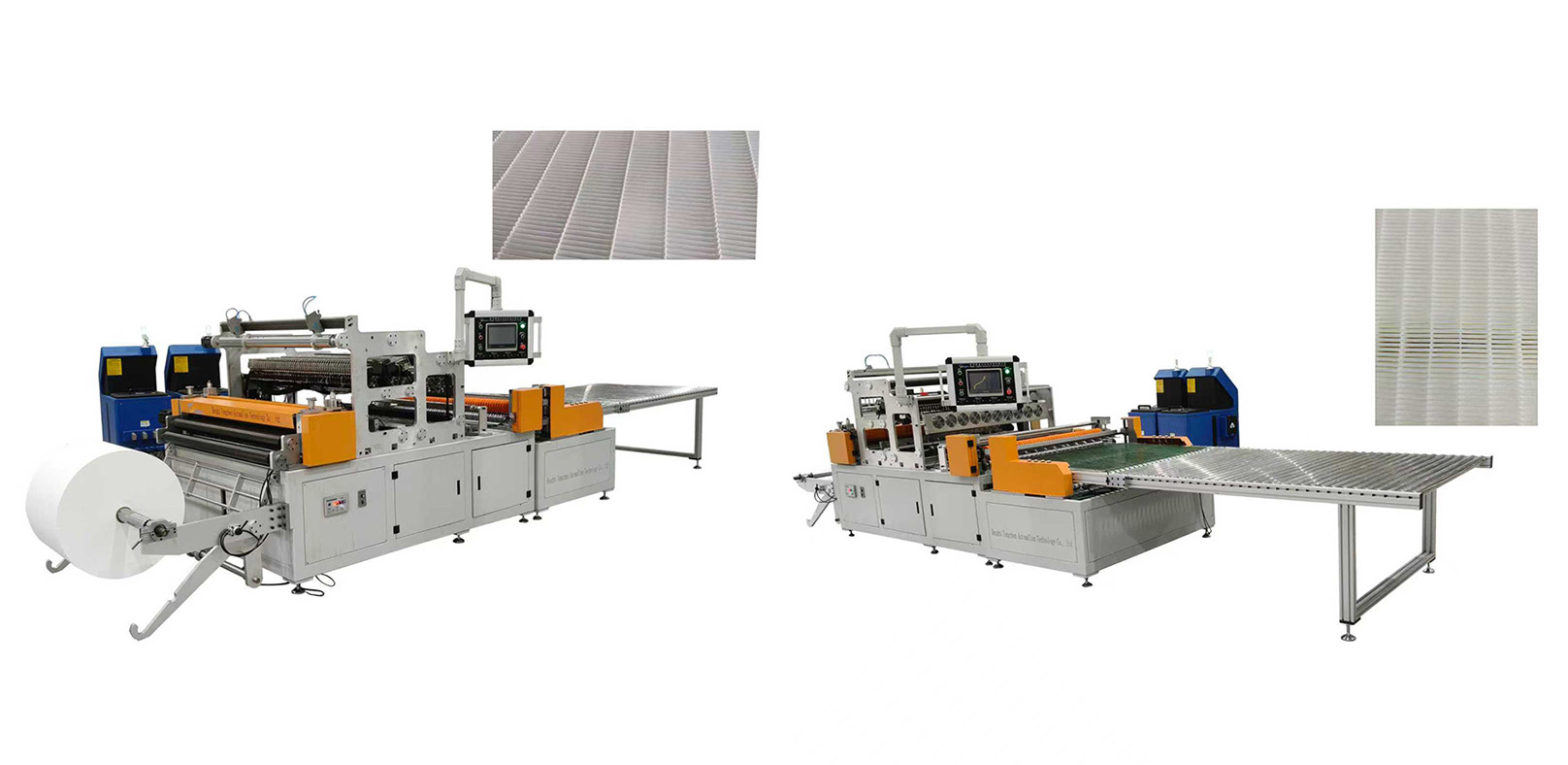

In the rapidly evolving world of air filtration, precision and efficiency are the cornerstones of high-quality HEPA and ULPA filter production. To meet the growing global demand for cleanroom technology and HVAC excellence, we are proud to showcase our 1300mm Fully Automatic High-Speed Non-Separator Pleating and Gluing Production Line.This advanced machinery is designed to streamline the manufacturing of glass fiber filters, ensuring consistent quality while maximizing throughput.

Precision Engineering & Seamless Operation

Our production line integrates a sophisticated, multi-stage process that transforms raw glass fiber filter paper into finished, high-performance pleats through a fully automated workflow:

 * Automated Feeding & Tension Control: Utilizes an air expansion shaft and precision powder controller to maintain perfect material tension.

 * Precision Embossing & Cutting: Features specialized filter paper embossing and pneumatic cutting for clean, accurate dimensions.

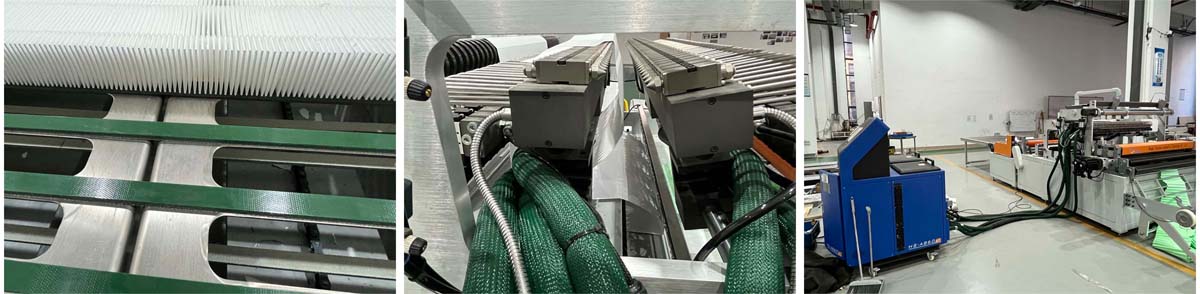

 * Advanced Gluing Technology: Equipped with two sets of 50-point independent glue spraying components and dual 50L hot melt glue machines.

 * Consistent Forming: The system uses fan and multi-axis natural cooling to set the adhesive before the folding and shaping process.

Key Technical Specifications

Designed for versatility and high-volume output, this production line offers industry-leading parameters:

Why Choose Our Non-Separator Production Line?

1. Intelligent Control Systems

The heart of the machine is a 5-axis INOVANCE PLC unit paired with a 10-inch touch screen interface. This allows operators to arbitrarily control glue quantity, pleat height, and spray patterns (including continuous, single-side, double-side, and staggered injection) with ease.

2. High-Quality Components

We utilize premium components to ensure long-term durability and minimal downtime:

 * Motors: Huachuang full digital servo motors and drivers (4 sets).

 * Reducers: High-precision Taiwan Fenghua reducers.

 * Pneumatics: Reliable Yadeke cylinders, solenoid valves, and pressure regulators.

 * Build Quality: Thickened aluminum profiles and shafts electroplated with hard chromium for wear resistance.

3. Superior Product Flatness

The "Wave Flatness" standard of this machine ensures that every pleat is uniform in height and spacing. The integrated servo synchronization device on the conveyor belt allows for free control over the distance between papers, resulting in a perfect finish every time.

Elevate Your Filter Production Today

Whether you are producing filters for medical facilities, semiconductor manufacturing, or high-end residential HVAC systems, our 1300mm production line provides the reliability and speed your facility needs.

Ready to upgrade your manufacturing capabilities?

Contact our technical team today to learn more about our automated filtration solutions.
