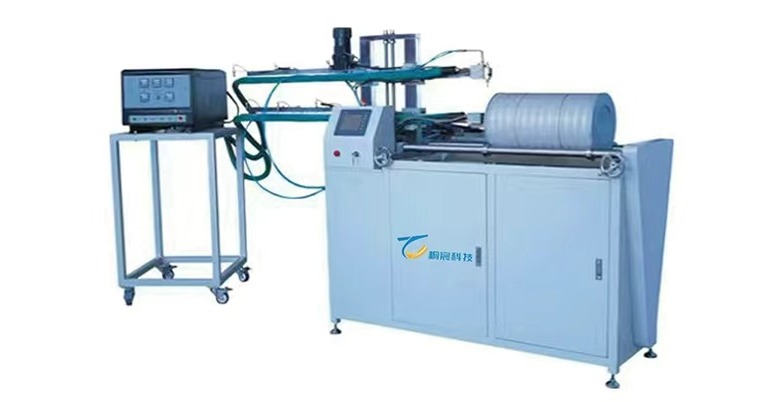

The TC-950 HDAF Horizontal Gluing Machine is designed for applying hot melt adhesive to heavy-duty air filter elements. With dual glue gun drivers and a computer-controlled system, it ensures precise end sealing for large cylindrical filters up to 950 mm in length.
Order(MOQ) :
1Payment :
FOBProduct Origin :
China Anhui BengbuShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :
15DaysThe TC-950 HDAF Horizontal Gluing Machine is a high-precision industrial hot melt adhesive application system engineered for sealing heavy-duty air filter (HDAF) elements. Designed with dual glue guns—one upper and one lower—it ensures full 360° bonding coverage for cylindrical filters with diameters above 100 mm and lengths up to 950 mm.
Equipped with a 10 kg hot melt tank, 6 kW heating power, and a production capacity of 3–5 pieces per minute, the TC-950 delivers fast, stable, and uniform adhesive application. Its integrated computer control cabinet ensures accurate parameter settings, automatic operation, and consistent adhesive output, making it ideal for mass production of heavy-duty air filters.
Main Features
Dual glue guns (upper & lower) for complete 360° adhesive coverage
Computer-controlled system for precise and stable operation
High productivity of 3–5 pcs/min
Supports filter lengths up to 950 mm
Handles air filter diameters over 100 mm
Hot melt tank with 10 kg capacity ensures continuous working
6 kW heating power for consistent melt quality
Strong and compact machine frame for long-term industrial use
Advantages
Improves bonding consistency with synchronized upper/lower glue guns
Speeds up production with automated gluing at high cycle rates
Reduces glue waste through controlled adhesive output
Optimized for HDAF filter assembly with precise glue distribution
Reliable performance suitable for 24/7 industrial production
Easy to integrate into existing filter production lines
Low maintenance & durable structure
Technical Specifications
|
Item |
Specification |
|
Production Capacity |
3–5 pcs/min |
|
Max Filter Length |
≤ 950 mm |
|
Filter Diameter |
> 100 mm |
|
Power Supply (Main Machine) |
220V / 50Hz |
|
Air Pressure |
0.6 MPa |
|
Hot Melt Machine Power Supply |
380V / 50Hz |
|
Hot Melt Capacity |
10 kg |
|
Hot Melt Heating Power |
6 kW |
|
Main Machine Power |
1 kW |
|
Machine Weight |
450 kg |
