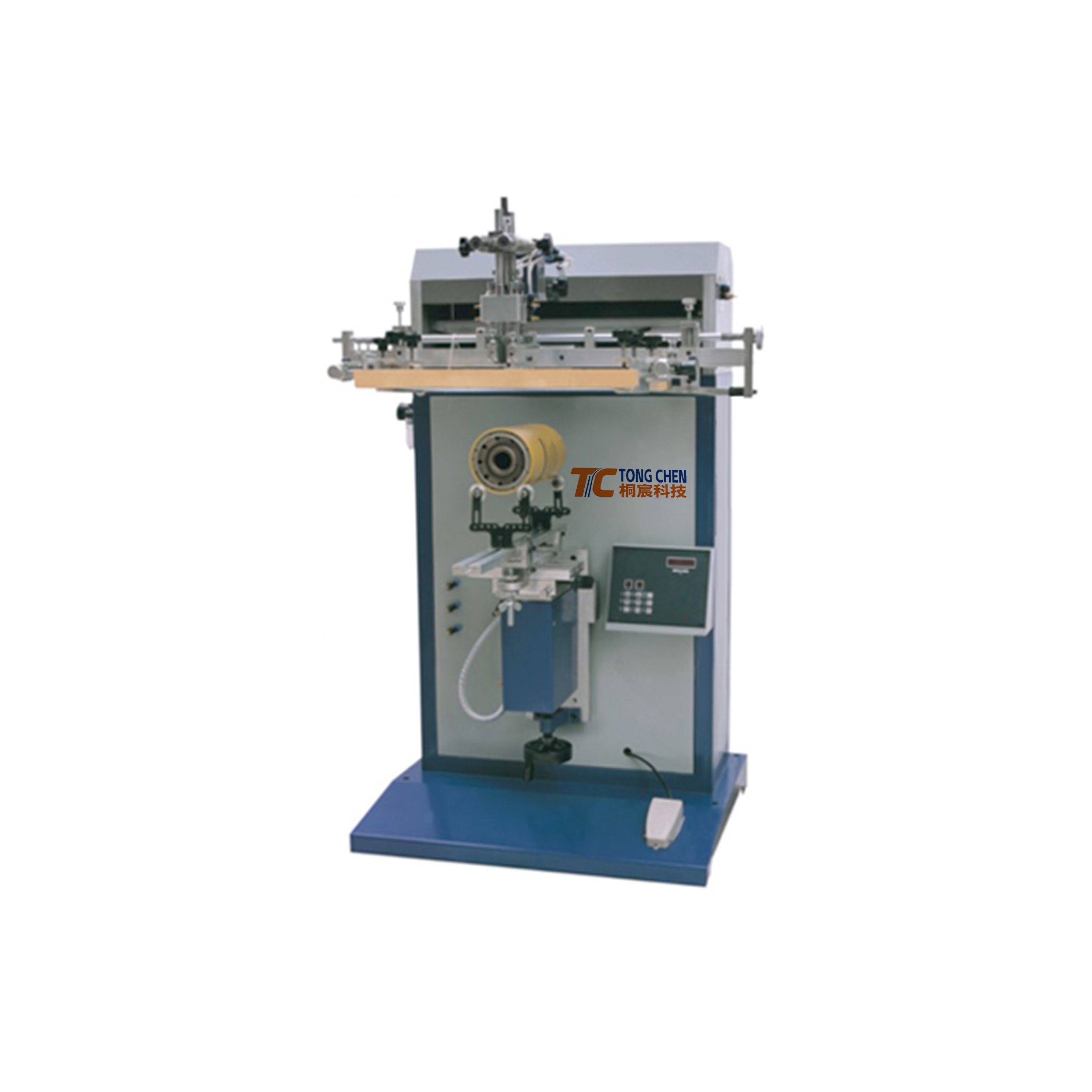

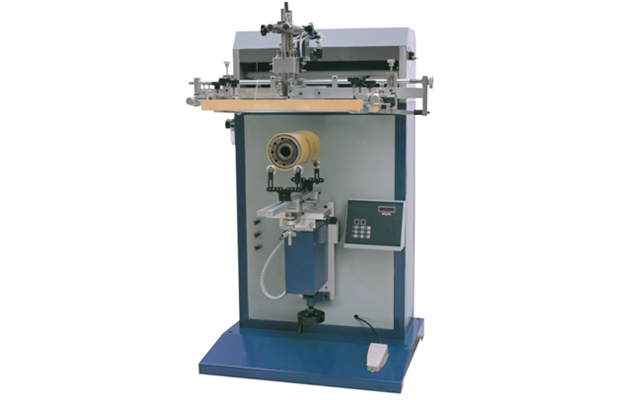

Silk Printing Machine for Printing the Shell of the Filter

The Silk Printing Machine for Printing the Shell of the Filter is an automatic equipment focusing on the special printing needs of filter housings, with high efficiency, precision and convenience as its core advantages, tailored for mass production scenarios. Precisely adapting to filter housings with a diameter of ≤Φ125mm and length of ≤320mm, the equipment relies on a stable working air pressure of 0.6MPa and a pneumatic control system to realize the automatic cycle of the entire feeding and printing process, with a printing speed of up to 1000 pcs/h, greatly shortening the production cycle.

• The machine employs safe physical construction and well suited electric control,adopting pneumatic operation,working fast and sensitive.
• The machine which load and print automatically is high efficiency and good quality.
• Accurate printing could be made as the screen plate itself is able to move and easy to operate.

Specially designed for filter housing printing, it is widely used in various filter production enterprises, auto parts processing factories and other related fields, suitable for the silk printing processing needs such as logos, parameters and patterns on filter housings.

• High Efficiency & Output: Printing speed of 1000 pcs/h, full-process automatic operation, greatly improving production efficiency and meeting the demand of mass production
• Stable Quality: Reliable mechanical structure and precise pneumatic control ensure uniform printing effect and stable and controllable product quality
• Convenient Operation: Touch-sensitive panel design with intuitive function selection, low learning difficulty, reducing the training cost of operators
• Flexible Adaptability: Specifically designed for filter housings, accurately matching the size range of printed parts with strong adaptability
• Flexible Layout: Lightweight machine body (only 100kg) and compact shape, occupying small workshop space, facilitating movement and layout optimization

• Pneumatic control execution system
• High-precision electrical control system
• Sensitive touch-sensitive operation panel
• Automatic feeding and positioning mechanism
• Silk printing execution component
• 0.6MPa air pressure adaptation device
• 220V/50HZ power supply adaptation system
• Lightweight machine frame (including support structure)

Bengbu Tongchen Automation Technology Co., Ltd. specializes in the design and production of filter manufacturing equipment.
With advanced engineering and a focus on quality, Tongchen provides efficient, precise, and reliable automation solutions for the filtration industry.

Our machines are widely used in HEPA filter, automotive filter, and industrial filtration production lines, delivering proven performance and consistent results for customers worldwide.
