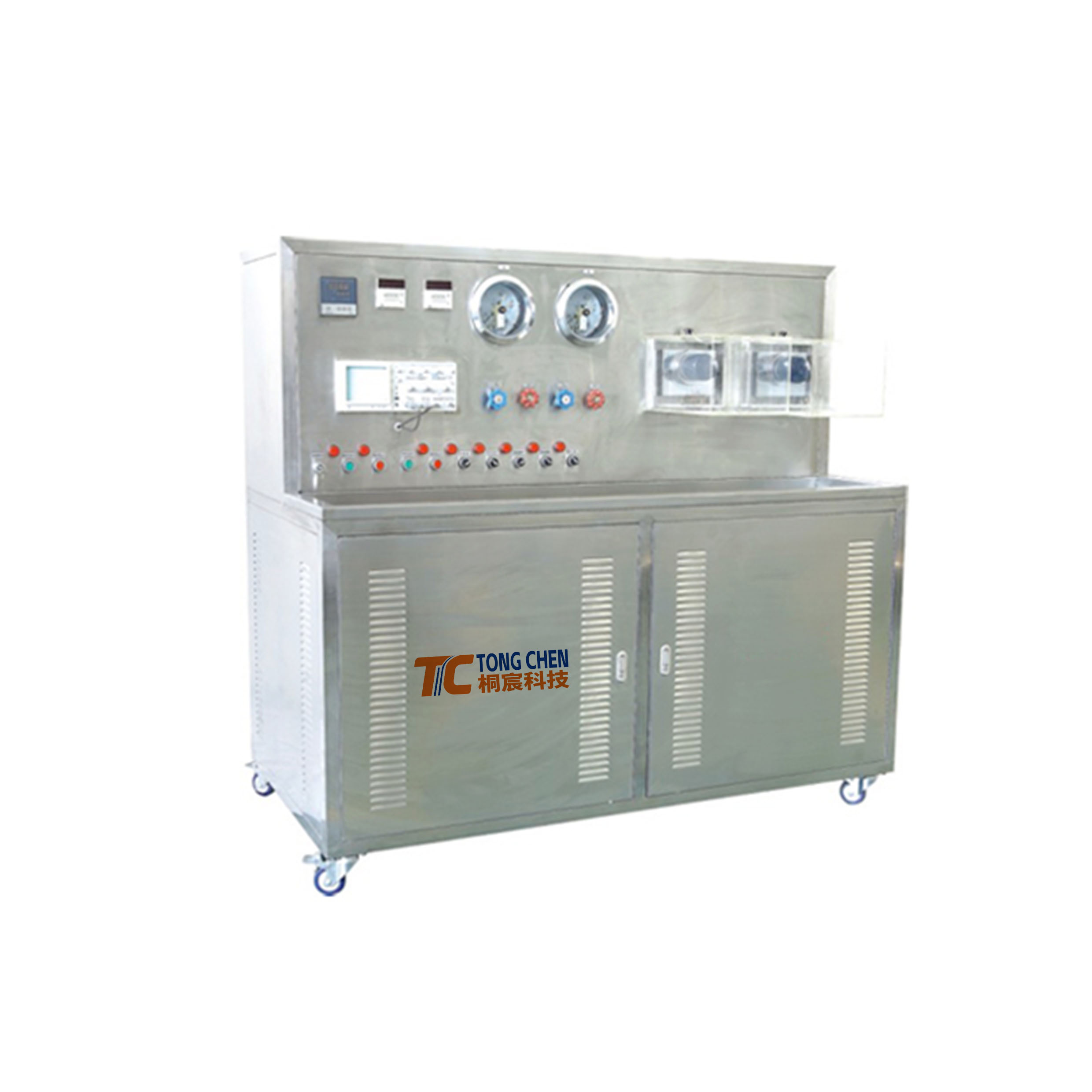

Dual-Station Oil Filter impulse Fatigue Tester

The Oil Filter Impulse Fatigue Tester is specialized for testing the shell and seal performance of spin-on oil filters (flow ≤50L/min). It features a dual-station design to test two different specs simultaneously, with automatic impulse setting, counting, and shutdown. Boasting Class 1 pressure precision, 0~2MPa adjustable pressure, and 0.25~1Hz impulse frequency, it displays waveforms and pressure via a long-scan oscilloscope. Equipped with temperature control (normal~100℃) and auto-protection for high pressure, low liquid level, and overload, it complies with ISO 4548/JB/T 6725-93 standards, ensuring reliable and compliant testing for engine startup high-pressure fluctuation resistance.

• Automatically set impulse frequency,and stop when arrival,meanwhile record the impulse frequency.
• can test two different filters at two different areas.
• Use high-precision long scan oscillograph and pressure sensor to automatically display the impulse wave and pressure respectively.
• Automatically shows the signals in normal and abnormal test conditions.
• The stand is automatically protected when higher-pressure,lower liquid level,and the specified limits.
• Test criterions: JB/T6725-93,Iso45648.

It is used to test the shell and seal performance of rotary oil fillter with flow quantity less than 50L/min,and the ability to bear high-pressure fluctuation in rated frequency when motor started

• Accurate and reliable test data, fully complying with international and domestic industry standards, and the test results are authoritative.

• High degree of automation, reducing manual intervention, lowering operation errors, and improving the standardization of test processes.

• Industrial-grade touch operation interface, intuitive and convenient parameter setting, low entry threshold, no need for professional technical background.

• Modular structure design, core components are easy to disassemble and maintain, extending equipment service life and reducing operation and maintenance costs.

• Compatible with various types of oil filters such as spin-on type, meeting the test needs of products of different specifications with strong compatibility.
