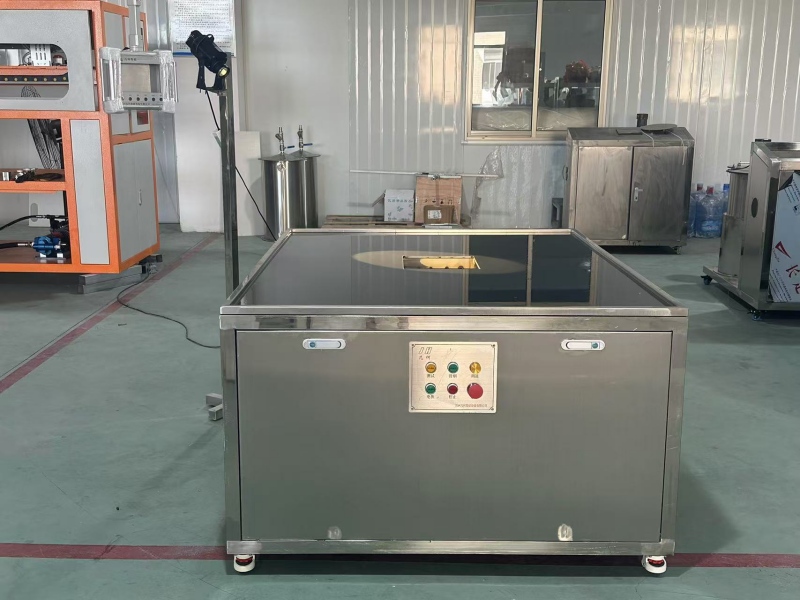

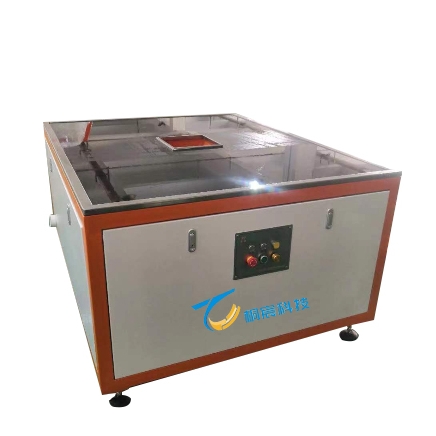

TC-1215 Smog Detection Bench Air Purifier Filter Testing
The TC-1215 Smog Detection Bench is a professional testing system designed for evaluating air filter integrity through visible smoke leakage inspection. Built with a stainless-steel frame and a steel-plate door with high-temperature baking paint, this equipment ensures durability, stability, and long-term performance in industrial and laboratory environments.
Designed for filters ranging from 280×280mm to 1200×1500mm, the system provides accurate, intuitive visual testing results under controlled darkroom conditions. With adjustable smoke release time, airflow regulation, and efficient exhaust management, it delivers a reliable and user-friendly inspection experience.

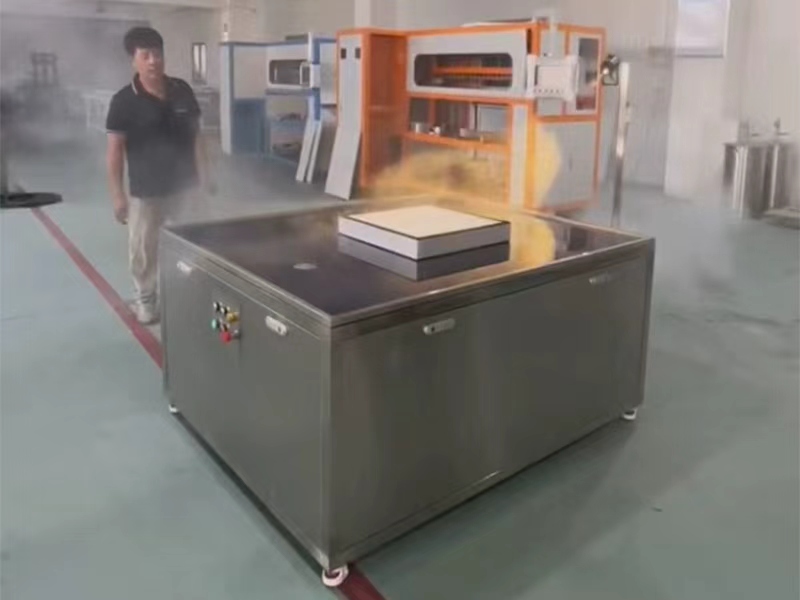

Product categoriesThe TC-1215 Smog Detection Bench is engineered to help manufacturers and quality-control teams quickly identify filter leakage through a standardized smoke-projection method. Equipped with a high-performance smoke generator, adjustable airflow, automated smoke discharge, and a front-projection lighting setup, it ensures clear visibility and consistent test conditions.
This system is ideal for filter production lines, laboratory testing rooms, research facilities, and air-purification equipment manufacturers.
 |
 |
Main Features
Stainless Steel Structure – Corrosion-resistant frame ensures long service life.
Wide Filter Compatibility – Supports filter dimensions from 280×280mm to 1200×1500mm.
Efficient Smoke Generation – Adjustable 0–30 seconds smoke release with a built-in time-delay controller.
Precise Airflow Control – Knob switch allows airflow adjustment for small or large filters.
Clear Leakage Visualization – Works with a projector lamp to highlight even minor smoke leaks.
Quick Smoke Exhaust System – Dedicated discharging button removes residual smoke for the next test cycle.
Safety Protections – Emergency stop button stops the air blower immediately.
Easy Installation – Simple pipeline connection and power interface design.
Advantages
Highly Intuitive Testing – Instant visual confirmation of filter leakage.
Fast Operation – Each test cycle is completed in seconds, boosting production efficiency.
Stable Performance – Consistent smoke output and strong airflow reliability.
User-Friendly Control Panel – Simple button functions for operators of all skill levels.
Low Maintenance – Smoke generator and stainless structure require minimal upkeep.
Suitable for Mass Production QC – Ideal for continuous filter inspection tasks.
Technical Specifications
| Item | Specification |
|---|---|
| Model | TC-1215 Smog Detection Bench |
| Dimensions | 1200 × 1500 × 800 mm |
| Frame Material | Stainless steel |
| Door Material | Steel plate with baking paint |
| Filter Size Range | Min: 280 × 280 mm / Max: 1200 × 1500 mm |
| Required Room Size | Darkroom ≥ 5.5 × 2.5 m with outdoor smoke vent |
| Power Supply | 220V (one 3-hole socket + one 2-hole socket) |
| Air Pressure | ≥ 0.5 KP compressed air |
| Smoke Release Time | 0–30 seconds (adjustable) |
| Preheat Time | 10–20 minutes (depending on temperature) |
| Airflow Control | Adjustable knob switch |
| Functions | Test, Smoke Release, Smoke Discharge, Emergency Stop |
Applications
The TC-1215 Smog Detection Bench is suitable for:
Air filter manufacturing plants
Laboratory air filtration testing
HVAC filter quality control
Cleanroom equipment suppliers
Automotive filter production
Environmental protection equipment research
Air purifier filter testing
Industrial filtration inspection facilities
Why Choose Us?
Professional Manufacturing Experience – Proven expertise in filtration testing machinery.
High-Quality Components – Durable stainless-steel build ensures long-term reliability.
Strong Technical Support – Professional assistance for installation, training, and troubleshooting.
Customizable Solutions – Tailored configurations available for specific industry needs.
Fast After-sales Service – Quick response to operational or mechanical issues.
