Partitioned Glass Fiber Folding Paper Production Line
The Partitioned Glass Fiber Folding Paper Production Line offers an efficient and precise solution for producing filter media with separators.Designed for stability and flexibility, it allows easy adjustment of pleat height and spacing to suit different filter specifications.
Order(MOQ) :
1Payment :
FOBProduct Origin :
Bengbu Anhui ChinaShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :

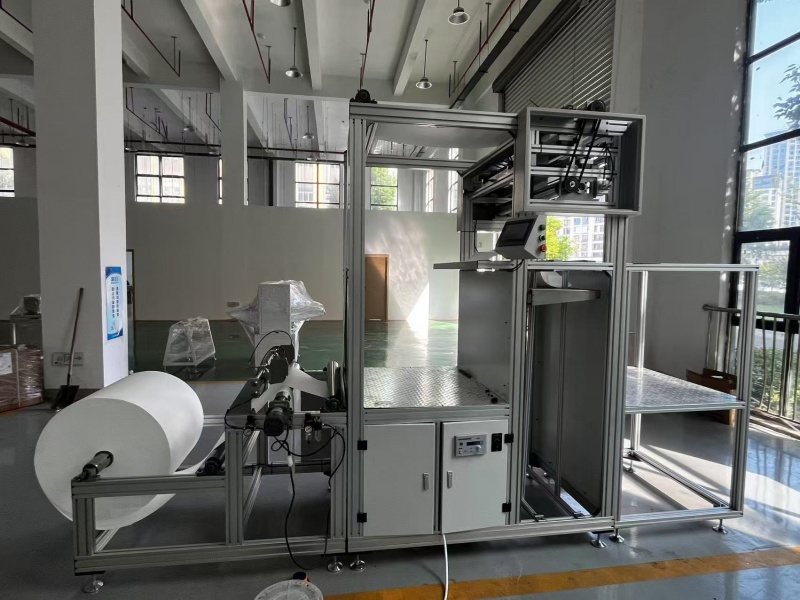

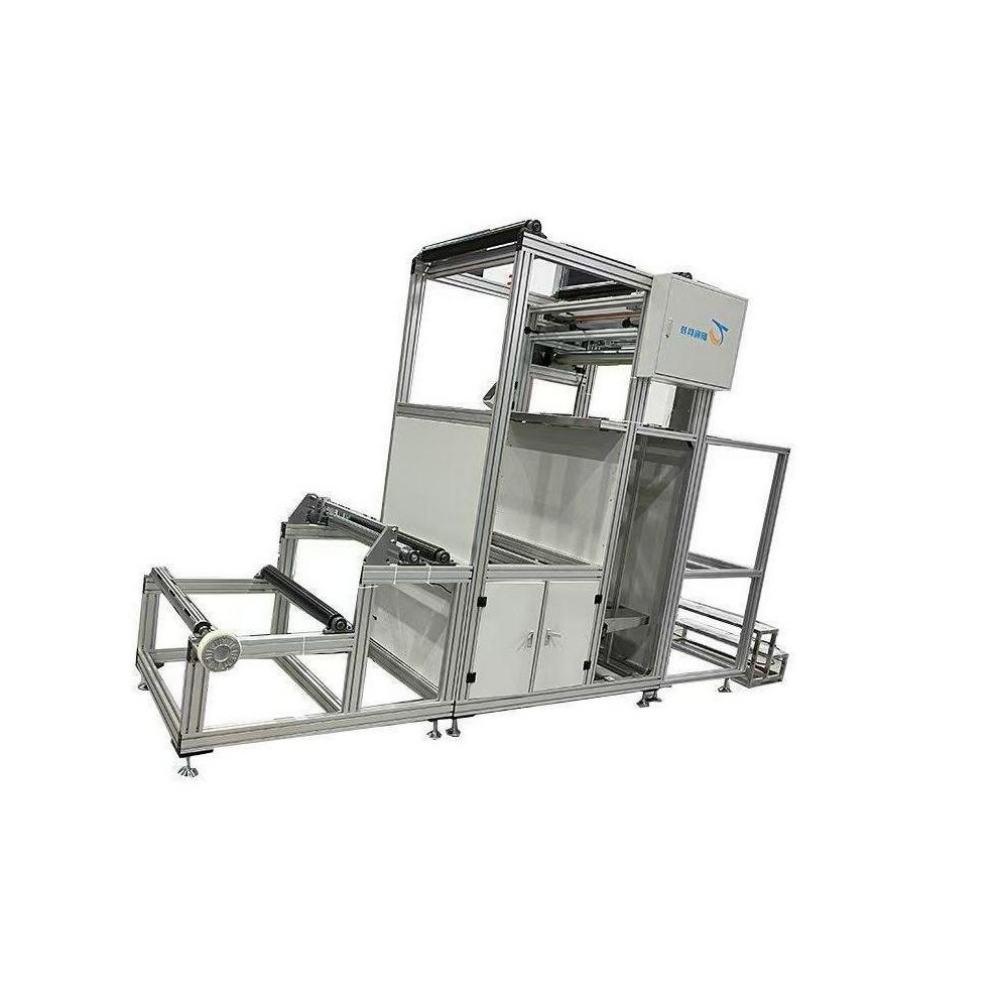

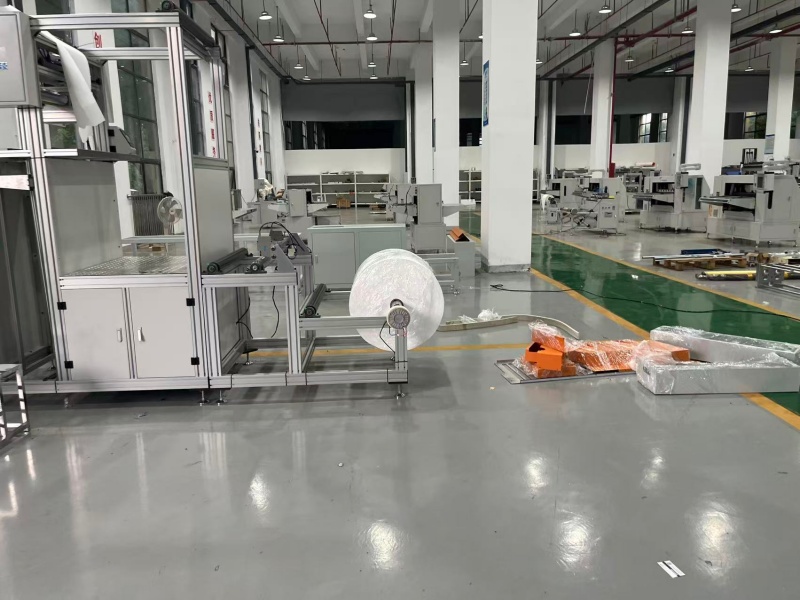

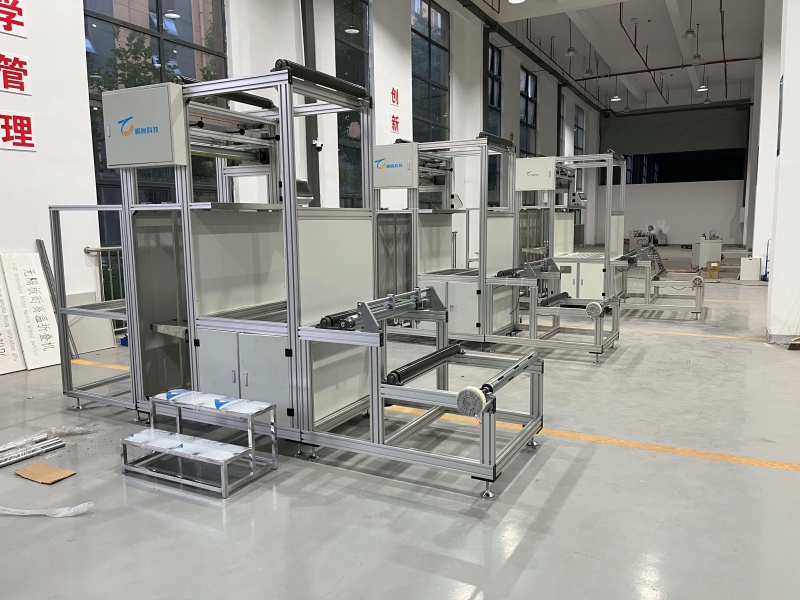

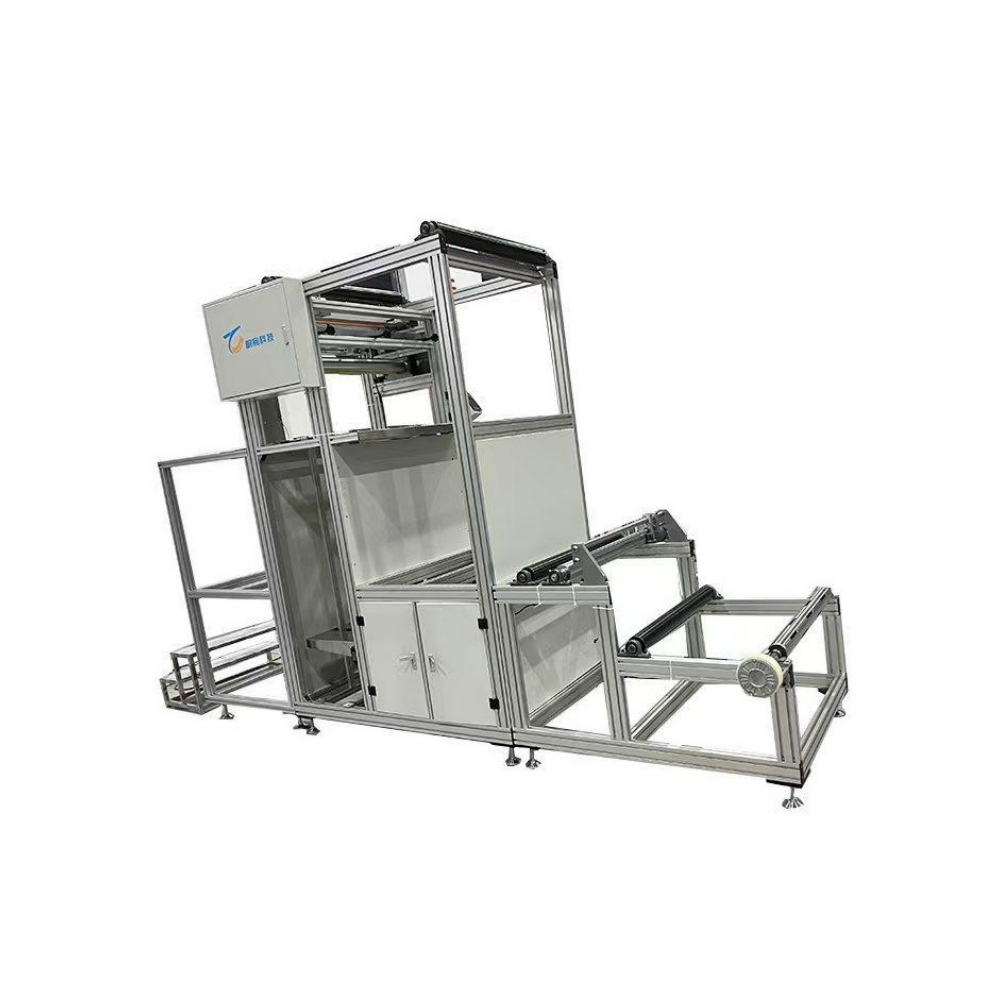

15-30 DaysThe Partitioned Glass Fiber Folding Paper Production Line is a high-precision, automated machine designed for folding and forming partitioned glass fiber filter materials.
It provides stable performance, accurate pleating control, and reliable operation, making it ideal for manufacturing HEPA, ULPA, Auto and industrial air filter elements with partition separators.
This equipment integrates tension control, automatic cutting, embossing, and folding in one continuous process. The folding height and pleat spacing are digitally controlled, ensuring uniform pleats and consistent quality for glass fiber materials.
Technical Parameters
|
Parameter |
Specification |
|
Production Capacity |
1-10m/min |
|
Folding Height |
5 – 300 mm |
|
Folding Spacing |
3 – 30 mm |
|
Filter Paper Width |
≤ 700 mm |
|
Motor Power |
0.75 kW |
|
Power Supply |
220 V / 50 Hz |
|
Working Air Pressure |
0.6 MPa |
|
Machine Weight |
500 kg |
|
Overall Dimensions (L × W × H) |
3560 × 1285 × 2460 mm |
Main Features
Computer-Controlled Folding System: Folding height and width can be freely set through the digital control interface for precise adjustment.
Automatic Speed Regulation: Servo motor with PLC system automatically adjusts the speed to suit different material types and production requirements.
Stable Folding Accuracy: Ensures uniform spacing and flat pleats for partitioned glass fiber media.
User-Friendly Operation: 7-inch touchscreen for quick parameter setup and process monitoring.
Durable Construction: Built with a thickened aluminum alloy frame, tension control system, and precision mechanical components.
Efficient Workflow: Integrates feeding, cutting, embossing, manual corrugation placement, and forming into one streamlined process.
Application Scope
This production line is mainly used for:
Configuration List
|
Component |
Specification / Brand |
|
Servo Motor & Driver |
Fully digital system, Brand: Delta, Quantity: 1 set |
|
Stepper Motor |
Fully digital Migao stepper motor |
|
Touchscreen |
7-inch control panel, Brand: Xiankong |
|
PLC Controller |
Five-axis programmable control unit with program design, Brand: Delta |
|
Mechanical Parts |
Shafts with hard chrome plating; other parts with nickel plating and blackened surface treatment |
|
Cylinders / Valves / Regulators |
Brand: Jiahe; Bearings: Harbin |
|
Main Machine Structure |
Thickened aluminum alloy frame, tension control system, filter tensioning shaft, automatic cutting, embossing, manual corrugation placement, product forming |
|
Standard Parts & Instruments |
All instruments installed for easy disassembly and maintenance |
Advantages

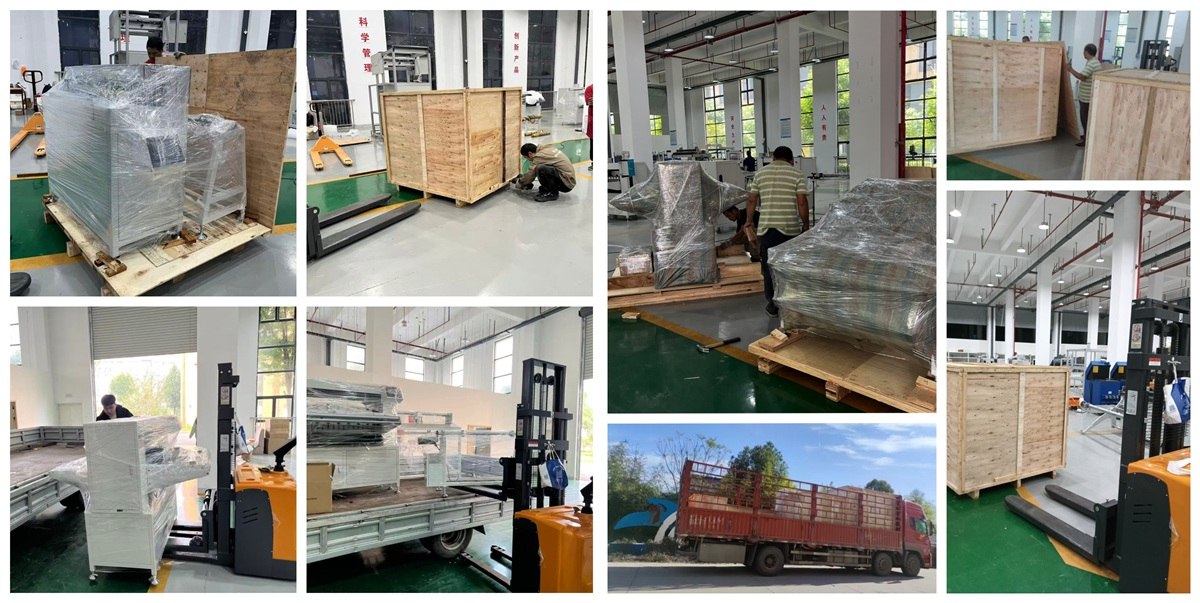

Our Packing
Why Choose Us？
Bengbu Tongchen Automation Technology Co., Ltd. specializes in the design and production of filter manufacturing equipment.
With advanced engineering and a focus on quality, Tongchen provides efficient, precise, and reliable automation solutions for the filtration industry.
Our machines are widely used in HEPA filter, automotive filter, and industrial filtration production lines, delivering proven performance and consistent results for customers worldwide.
