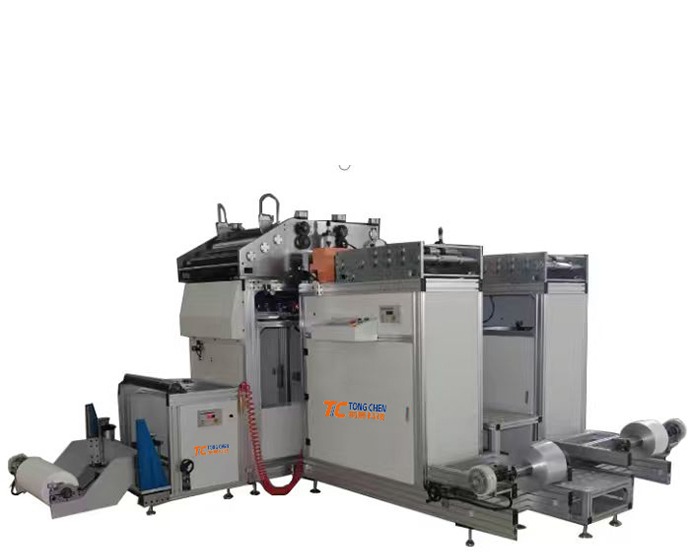

Fully Automatic Partitioned Folding Filter Paper Production Line

It provides stable performance, accurate pleating control, and reliable operation, making it ideal for manufacturing HEPA, ULPA, Auto and industrial air filter elements with partition separators.

This equipment integrates tension control, automatic cutting, embossing, and folding in one continuous process. The folding height and pleat spacing are digitally controlled, ensuring uniform pleats and consistent quality for glass fiber materials.

1. Folding width and height are computer-controlled, allowing arbitrary height settings.

2. This machine supports simultaneous processing of fiberglass paper and molded aluminum foil.

3. Utilizing servo motors and computer automation, it automatically feeds aluminum foil and folds it into shape, adapting to diverse production requirements.

This production line is mainly used for:

• Primarily used for folding and forming fiberglass materials with separator layers.

• Folding and forming of partitioned glass fiber materials

• Manufacturing HEPA and ULPA filter cores with separators

• Production of industrial and HVAC air filters requiring stable pleat structures



1. Motor Configuration: Fully digital servo motors and drives, Brand: (Xinjie), Quantity: 18 sets

2. High-precision reducer, Brand: Nissidate

3. Touchscreen Configuration: 10-inch touchscreen, Brand: (Xinjie)

4. PLC Programmable Controller Configuration: Five-axis control unit (including programming engineering), Brand: Xinjie

5. Mechanical Components: Shafts undergo electroplated hard chrome plating; other parts receive standard decorative blackening treatment.

6 .Main Unit: Reinforced aluminum alloy frame, tension control system, filter material tensioning shaft, automatic slitting, embossing, automatic corrugated sheet discharge, product forming.

7. Instrument Standard Parts Configuration: All instruments installed rationally for easy disassembly.

• Wide folding range: pleat height from 5mm to 300mm
• Servo and PLC integrated control for high precision
• Consistent pleat spacing and reliable glass fiber forming
• Compact structure, stable performance, and easy operation
• Durable build with high-quality components for long service life

Bengbu Tongchen Automation Technology Co., Ltd. specializes in the design and production of filter manufacturing equipment.
With advanced engineering and a focus on quality, Tongchen provides efficient, precise, and reliable automation solutions for the filtration industry.

Our machines are widely used in HEPA filter, automotive filter, and industrial filtration production lines, delivering proven performance and consistent results for customers worldwide.
