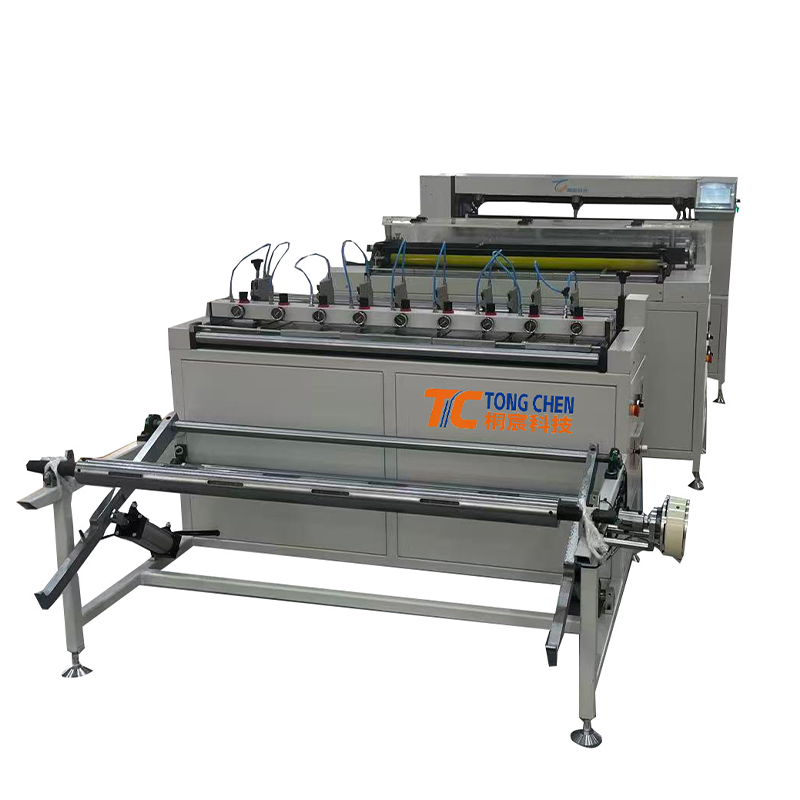

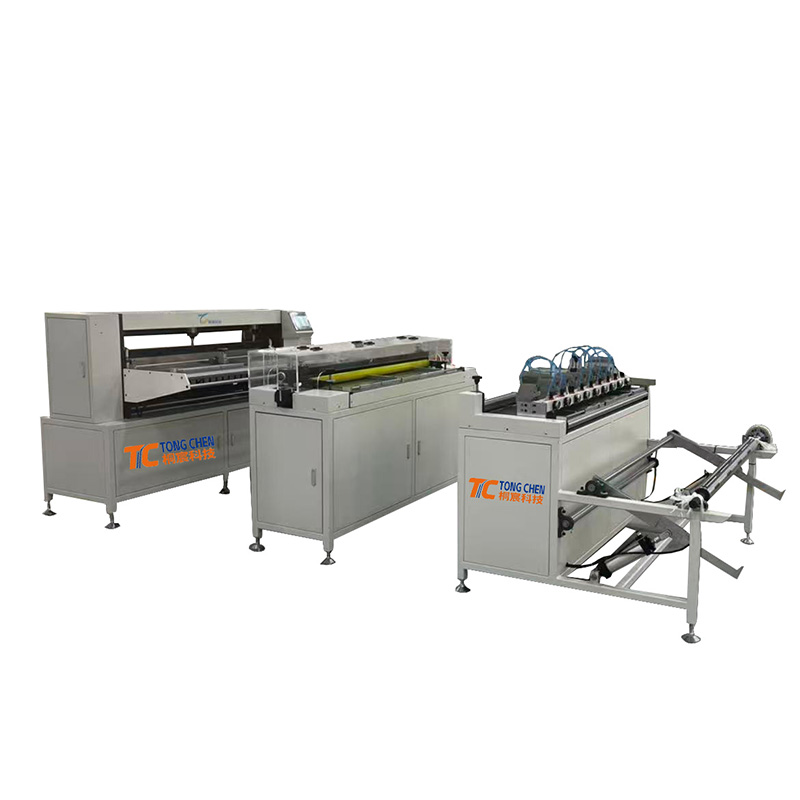

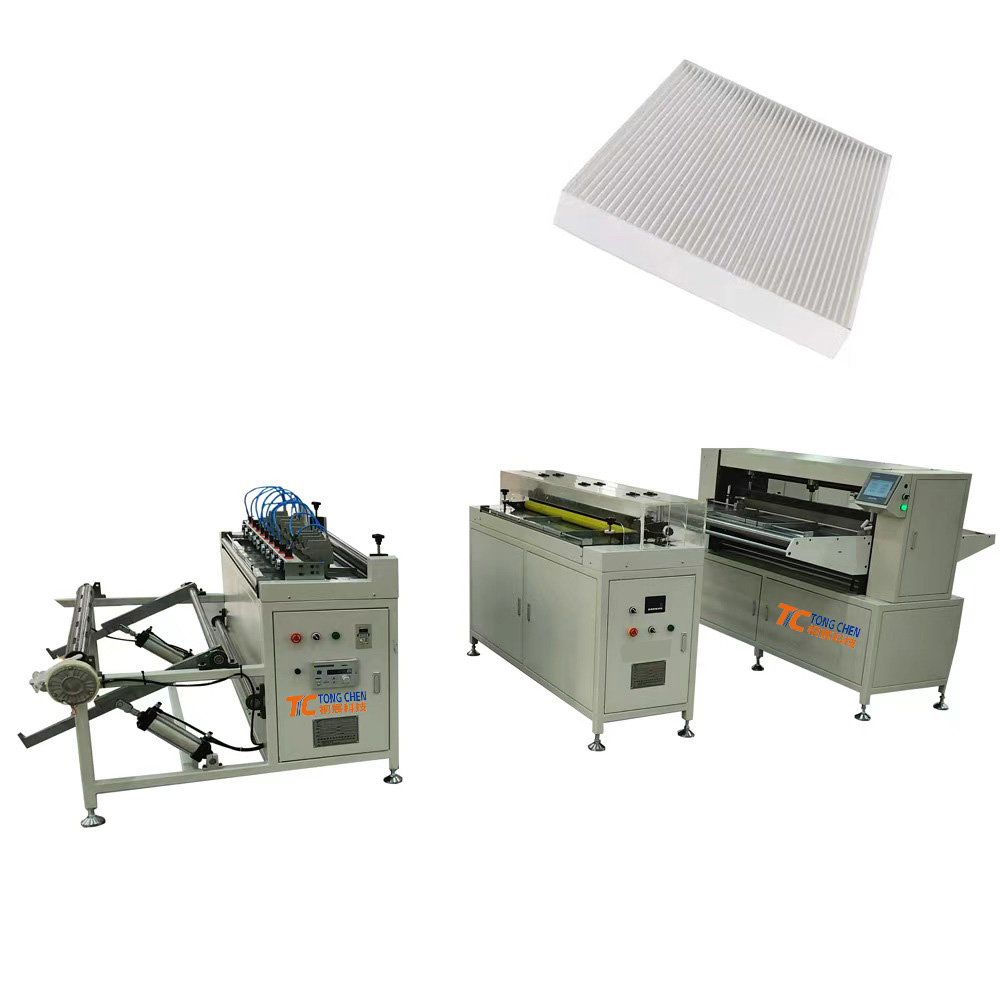

Second-Generation Semi-Automatic Paper Folding Production Line

Second-Generation Semi-Automatic Paper Folding Production Line

This Second-Generation Semi-Automatic Paper Folding Production Line integrates paper feeding, pre-slitting, marking, pleating and pre-heating in one integrated structure. With optimized structure, stronger stability and higher precision, it is widely used in automotive three-way catalyst, hydraulic, purification and water treatment industries.

The production line supports M-type pleating, multi-layer folding and customizable specifications, providing a cost-effective and high-performance solution for medium and small batch filter production.

Order(MOQ) :
1 Set
Payment :
FOB/CIF
Product Origin :
Bengbu,Anhui
Shipping Port :
Shanghai / Qingdao /Nanjing / Yiwu
Lead Time :
15-30 Days
Weight :
650 KG

Inquiry now

Second-Generation Semi-Automatic Paper Folding Production Line

Higher Efficiency · More Stable · Easier Operation · Wide Application

Professional for filter paper, non-woven fabric, wire mesh, M-type pleating

Second-Generation Semi-Automatic Paper Folding Production Line

Core Advantages

Wide Material Compatibility: Filter paper, non-woven fabric, iron wire fabric, multi-layer composite.

M-Type Pleating Supported: Meet high-performance filter production requirements.

Semi-Automatic & Labor-Saving: Simple operation, low training cost, high cost performance.

Flexible Customization: Width, pleat height, speed and configuration can be customized.

Main Functions

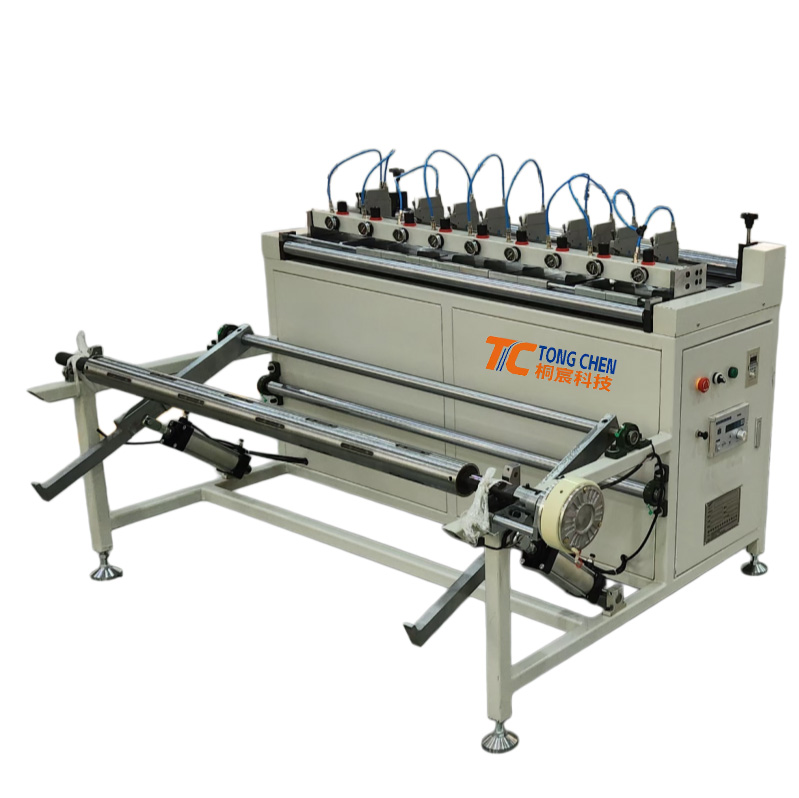

Pre-Slitting Unit

Frequency converter speed control

Precise cutting size adjustable

Infrared synchronous monitoring

Smooth and efficient running

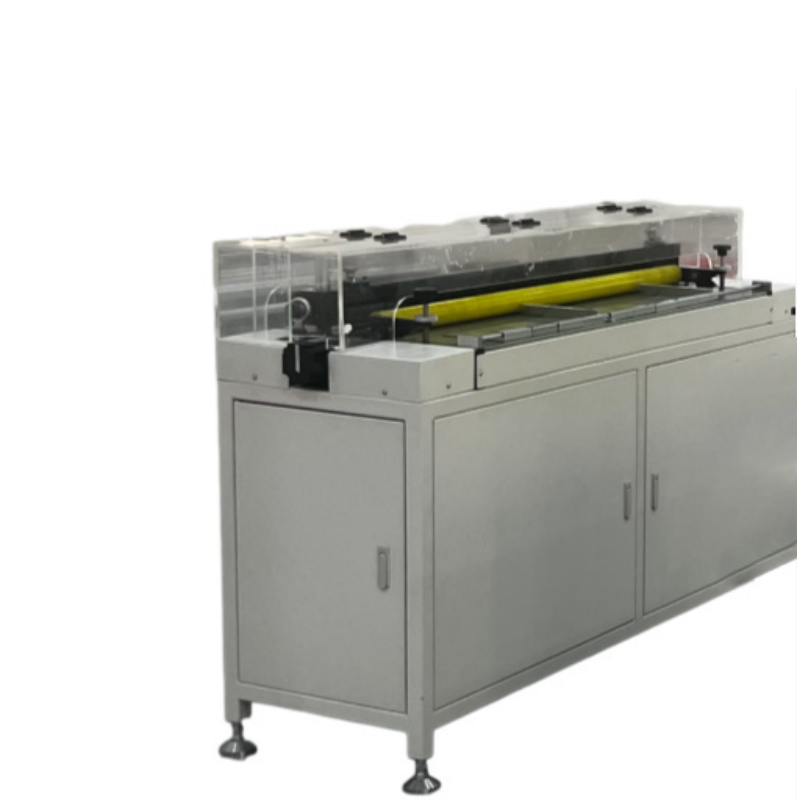

Marking Unit

Computer screen control

Free setting of marking distance

Automatic blade positioning

High accuracy and stability

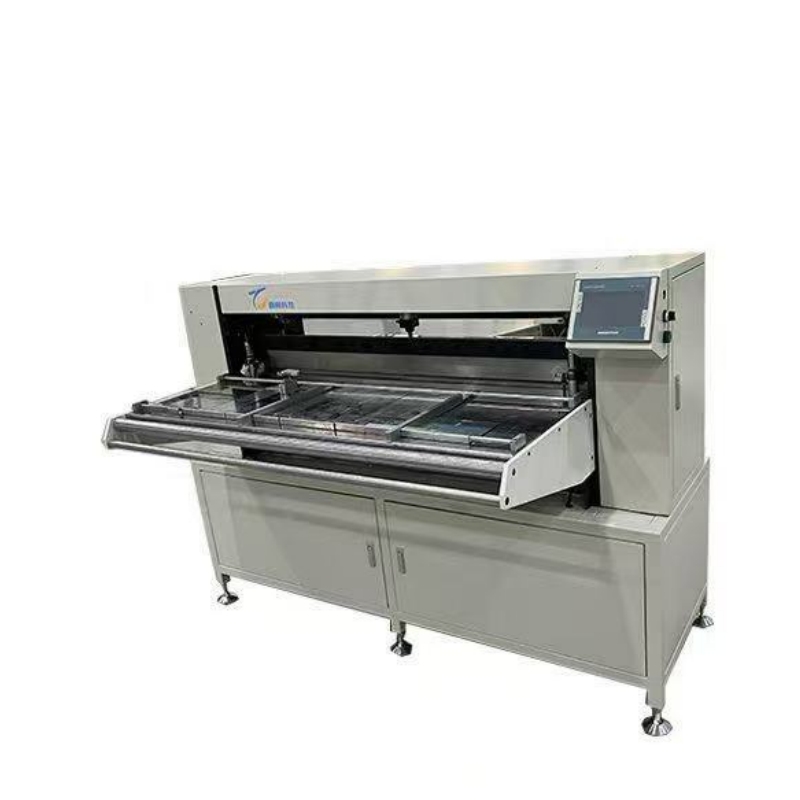

Pleating Unit

Upper and lower blades alternate folding

Automatic pleat height adjustment

Pre-heating and shaping system

Support M-type pleat and multi-layer folding

Technical Parameters

1.Pre-Slitting Machine

Speed	0.5–12 m/min (adjustable)
Adjustable width	30–1100 mm
Power supply	220V/50Hz
Weight	350 KG

2.Marking Machine

Max. marking width	1050 mm
Adjustable marking distance	8–55 mm
Power supply	380V/50Hz
Weight	400 KG

3.Pleating Machine

Max. working width	1050 mm
Adjustable pleating height	8–55 mm
Folding speed	0–200 fold/min (stepless adjustable)
Power supply	380V/50Hz

Application Industries

●Automotive three-way catalyst industry
●Hydraulic filter manufacturing
●Industrial purification & dust removal
●Water treatment filter industry
●Air filter production
●Multi-layer composite filter processing

Our Company Strength

Professional Manufacturer

We have many years of experience in R&D, production and sales of filter pleating equipment. Our products are sold worldwide with stable quality and high reputation.

Strong R&D Capability

Independent R&D team, continuous upgrading technologies to keep products ahead of performance.

Strict Quality Control

Each production line undergoes full-process testing and precision calibration before delivery to ensure stable performance.

Complete Production Base

Standardized workshop, advanced processing equipment, mature assembly process and complete quality inspection system.

Global Service System

Products exported to Europe, Asia, Middle East, South America and other regions.

We provide on-site installation, commissioning, operator training and long-term after-sales support.

Cost-Effective Solutions

We provide suitable equipment solutions for small, medium and large-scale manufacturers to improve production efficiency and product quality.

Customization Service

We support personalized customization according to customer requirements:

–Wider production line
–Higher pleat height
–Special M-type pleating system
–Multi-layer folding function
–Semi-automatic / fully automatic upgrade
–Non-standard size and structure design

Why Choose Us?

Mature second-generation technology, stable and reliable

High precision, good product consistency

Easy operation, low labor cost

Strong after-sales support

High cost-performance ratio

Long-term technical update service

Contact Us

Looking for reliable paper folding production line?

We are professional manufacturer of second-generation semi-automatic paper folding equipment.

Welcome to inquire, visit factory and test machine!
