Home Products Supporting Equipment for Filter Production Lines

Automatic Inverted Can Seaming Machine for Industrial

High-Precision Inverted Top-Down Seaming System

Automatic Inverted Can Seaming Machine for Industrial

The Automated Inverted Gluing & Seaming Machine for Special Spin-on Filters is an automated packaging equipment integrating vacuum sealing and heat sealing. It achieves precise inner sealing of various packaging bags and cartons through pneumatic drive and intelligent temperature control technology. Compatible with PE, PP, aluminum foil and other packaging materials, it can effectively isolate air, prevent moisture and leakage, extend product shelf life, and is widely used in standardized packaging scenarios across multiple industries.

Order(MOQ) :
1
Payment :
FOB
Product Origin :
Bengbu Anhui China
Shipping Port :
Shanghai / Qingdao / Nanjing / Yiwu
Lead Time :
15-30Days

Inquiry now

The Sealing Machine is an automated packaging solution integrating vacuum and heat sealing. Operated with 380V power and 0.6Mpa pneumatic pressure, it offers a sealing speed of 10-30 cycles/min and works with PE, PP, aluminum foil and composite films.

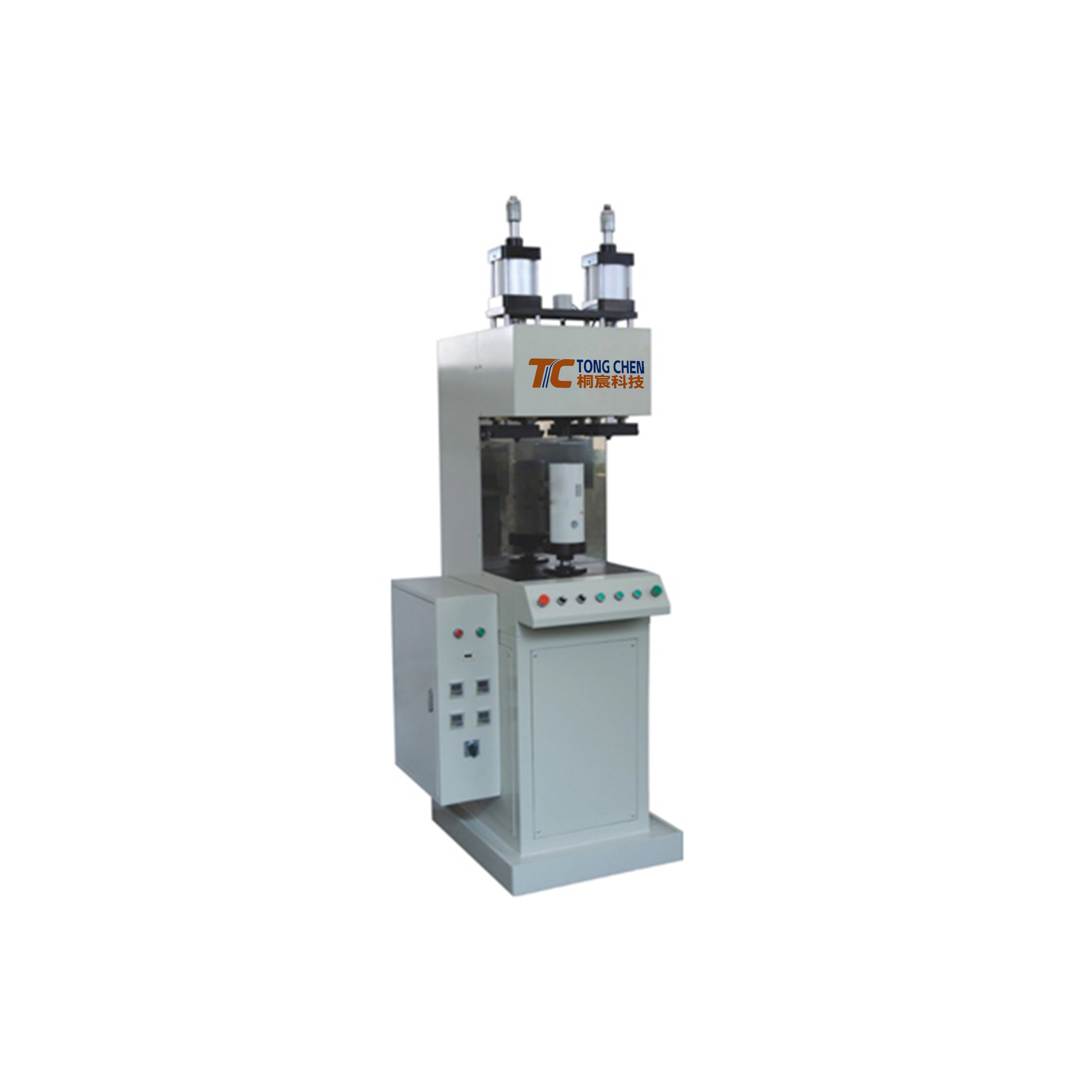

One-Step Auto Inverted Seaming Machine

Technical Parameters

Parameter	Specification
Product capability	8cans/min
Seaming diameter	Φ80~Φ130mm
Filter assemble height	200~300mm
Available steel thichness	0.5~1mm
Mainpowr	2.285kw
Working air pressure	0.6MPa
Power supply	380V/50HZ
M/C weight	400kg
M/C dimension	8807802260mm(LWH)

Main Features

Adopts pneumatic drive + heat sealing technology for uniform and stable sealing pressure
Supports vacuum sealing mode to expel residual air in the package
Adjustable temperature control range of 120-220℃, adapting to sealing needs of different materials
Compatible with various specifications of packaging, supporting sealing of special-shaped boxes and irregular bags
Precision Invert Sealer for Filter Shells and Fixed Plates,Dual-Button Safety Invert Sealing Machine for Filter Assemblies

Application Scope

This seaming machine is used for seaming the shells of the special spin on filters.

Advantages

High degree of automation, reducing manual intervention and improving packaging efficiency
Tight sealing effect, effectively preventing leakage, moisture and oxidation, extending product shelf life
Fuselage made of 304 stainless steel, meeting food-grade hygiene standards
Modular design with detachable core components for easy maintenance
Simple operation interface and intuitive parameter adjustment, with low entry threshold

Our Packing

Separator Type Glass Fiber Pleating Equipment

Why Choose Us？

Bengbu Tongchen Automation Technology Co., Ltd. specializes in the design and production of filter manufacturing equipment.
With advanced engineering and a focus on quality, Tongchen provides efficient, precise, and reliable automation solutions for the filtration industry.

Our machines are widely used in HEPA filter, automotive filter, and industrial filtration production lines, delivering proven performance and consistent results for customers worldwide.
