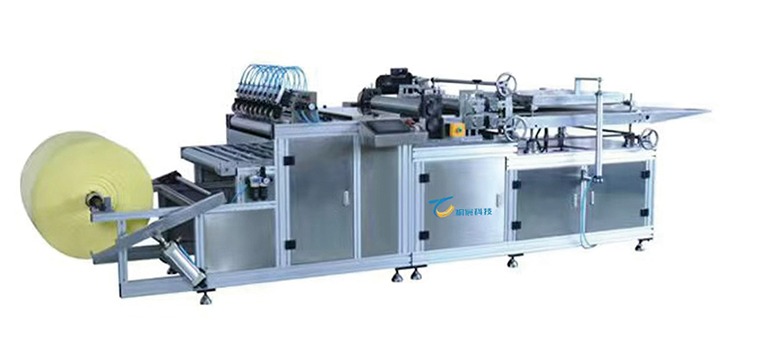

TC-600N Full-Automatic Rotary HDAF Paper Pleating Production Line
The TC-600N Full-auto Rotary HDAF Paper Pleating Production Line is a highly automated solution designed for precise pleating and heat forming of heavy-duty air filter (HDAF) paper. This production line integrates pre-slitting, pre-heating, steam conditioning, roller marking, pleating, and heat shaping into one continuous process, ensuring stable performance and high production efficiency.
Engineered for large air filter elements, the machine ensures consistent pleat quality, reduced paper breakage, and highly accurate pleat alignment, making it an ideal choice for heavy-duty vehicle filters, industrial filtration systems, and HVAC air filters.
Order(MOQ) :
1Payment :
FOBProduct Origin :
Bengbu Anhui ChinaShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :
15-30 DaysThe TC-600N Full-auto Rotary HDAF Paper Pleating Production Line is built for manufacturers seeking high-speed, stable, and precise pleating performance. With advanced pneumatic cutting, steam-assisted preheating, and an intelligent roller marking system, this production line guarantees excellent pleat consistency and durability. Its computer-controlled interface and integrated auto processes significantly reduce labor intensity and increase production output.
Main Features
1. The pre-slitting uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.
2. This machine equips the preheating and water steam device, to prevent the paper breaking when roller marking.
3. This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.
4. The rolls can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.
5. This high automatic machine has the process of the process of the auto-couning, pleating, preheating and forming.
6. This machine is computer control and simple operation.
Advantages
High Automation – integrates slitting, pre-heating, steam softening, pleating, and forming in one continuous line.
Stable Pleat Quality – roller marking system ensures uniform and straight pleats.
Low Paper Breakage – steam and pre-heating greatly improve paper toughness before folding.
Customizable Roller Types – bubbled or pleat-lock rollers for different HDAF structures.
User-Friendly Operation – PLC computer control with simple adjustment and stable performance.
Efficient Production Speed – up to 35 m/min supporting large-scale production.
Technical Specifications
|
Item |
Specification |
|
Product capability |
0–35 m/min |
|
Max. width |
600mm |
|
Min. width |
30mm |
|
Max. pleat height |
50mm |
|
Min. pleat height |
12mm |
|
Rollers sizes |
Customize the rollers sizes |
|
Temperature control |
0–300°C |
|
Main power |
12kW |
|
Working air pressure |
0.6MPa |
|
Power supply |
380V/50Hz |
|
Machine weight |
750kg |
|
Machine dimension |
3600 × 1170 × 1200mm (L×W×H) |
Main Components
|
No. |
Component |
|
1 |
Auto paper feeding rack |
|
2 |
Paper Pre-slitting machine |
|
3 |
Pre-heating device before pleating |
|
4 |
Auto counter |
|
5 |
Water steam device |
|
6 |
Rollers marking machine |
|
7 |
Roller and gear collecting device |
|
8 |
Pleated paper heat forming and conveyor device |
Applications
This machine is used for pleating and forming the HDAF filter element.
Suitable for：
Our Packing
Why Choose Us？
Over 15 years of expertise in air filter production machinery
Strong R&D capability with customizable solutions
Stable quality control and durable machine structure
Global installation and technical support
Competitive pricing with fast delivery
Widely used by top air filter manufacturers worldwide
