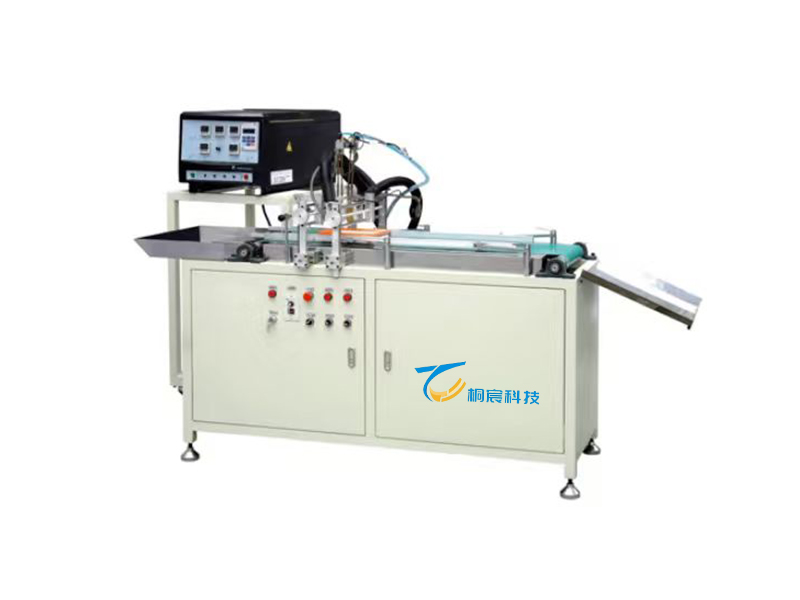

The TCFJ-2 Panel Air Filter Gluing Machine is a specialized hot-melt adhesive dispensing system designed for applying uniform glue lines on the surface of automotive panel air filters. Featuring stable production speed, precise dispensing, and high-efficiency heating, this machine ensures strong bonding performance and consistent filter quality. It is widely used in car panel filter manufacturing lines.
Order(MOQ) :
1Payment :
FOBProduct Origin :
Bengbu Anhui ChinaShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :
15-30 DaysThe TCFJ-2 Panel Air Filter Gluing Machine is engineered for dispensing hot melt lines on the surface of panel air filters. With a production capacity of 6 pieces per minute, an integrated 10kg hot melt glue machine, and 6kW heating power, it delivers fast melting, precise application, and continuous stable performance. The machine is compact, energy-efficient, easy to operate, and suitable for mass production of automotive panel filter elements.
Main Features
Specialized for Panel Air Filter Glue Dispensing
This machine is used for dispensing hot melt lines on the surface of the panel air filter.
Stable Output Efficiency
Production capacity reaches 6 pieces/min for consistent and efficient workflow.
Fast Heating & Strong Melting Capability
Features a 10kg hot melt glue machine with 6kW heating power for rapid glue melting.
Reliable Pneumatic Performance
Operating air pressure of 0.6MPa ensures stable glue extrusion and clean line formation.
Compact & Lightweight Design
Machine weight of only 250kg makes installation and transportation easy.
Independent Glue Machine Structure
Independent glue machine dimensions: 830*600*1400mm for convenient maintenance and operation.
Advantages
Ensures clean, even, and consistent hot melt glue lines
Suitable for various panel air filter sizes
Easy operation with low maintenance requirements
High stability with reliable pneumatic and electrical configuration
Energy-efficient heating control for reduced operational cost
Technical Specifications
|
Item |
Specification |
|
Production Capacity |
6 pieces/min |
|
Hot Melt Glue Machine Capacity |
10kg |
|
Hot Melt Glue Machine Heating Power |
6kW |
|
Operating Air Pressure |
0.6MPa |
|
Main Motor Power |
120W |
|
Power Supply Voltage |
380V / 50Hz |
|
Machine Weight |
250kg |
|
Machine Dimensions (LWH) |
2100*520*1130mm |
|
Glue Machine Dimensions (LWH) |
830*600*1400mm |
Configuration List
Main gluing machine
Hot melt glue machine (10kg capacity)
Pneumatic system
Heating system
Control panel
Applications
This machine is used for dispensing hot melt lines on the surface of the panel air filter.
Additionally suitable for:
Automotive panel air filter bonding
Flat or square air filter edge gluing
HVAC panel filter adhesive application
Hot melt precision dispensing in filter production lines
Our Packing
Why Choose Us?
Over 20 years of filter machinery manufacturing experience
Stable performance with precise glue control
Strong after-sales support including installation and training
Durable components for long-term operation
Cost-effective and suitable for high-volume production
