Automatic PU Pouring Machine for Filter Seal Packing

1. Stainless Steel Sealed Tank

2. High-Precision Metering Pump

3. Automatic Three-Position Casting Head

4. Universal CNC Workbench

5. Intelligent Control System

1. Digital Intelligent Operation

Adopts digital instrument display and computerized touch control, intuitive and easy to operate.

2. Precision Metering & Constant Temperature Control

Stable and precise material metering with automatic constant temperature system, ensuring high consistency of finished products.

3. Innovative Tank Structure

Innovative three-layer tank design with stepless mixing adjustment, flexible for different material ratio requirements.

4. Precision Reflux Casting Head

Unique head design with fine-tunable reflux precision, effectively avoiding raw material waste and overflow.

5. Multi-Shape Compatible Workbench

Equipped with X-Y axis rotary workbench, suitable for integrated casting of square, round and irregular-shaped air filters.

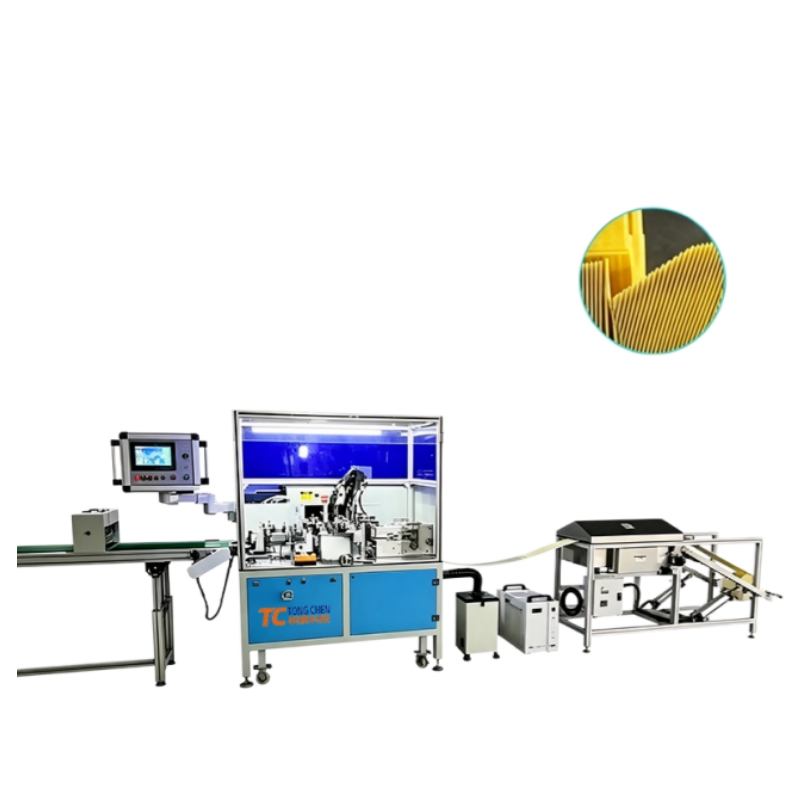

Panel Servo Paper Pleating Production Line

TONGCHEN Panel Servo Paper Pleating Production Line is a fully automatic filter paper forming machine equipped with advanced spray humidification system and dual servo glue injection units. It adopts high-quality Taiwan-made core components and PLC touchscreen control system, with 20–60 mm adjustable folding height and stable 5–50 m/min production speed. This high-precision, low-failure equipment ensures uniform paper pleating forming for efficient industrial batch production.

As the upstream process equipment of this PU casting machine, the panel pleating line completes the full pleating workflow: filter paper feeding → spray humidification → paper imprinting → automatic glue injection → folding & forming → conveyor output. The well-formed filter element cores are then transferred to the PU casting machine for end gasket sealing and casting.

With its maximum 320 mm filter paper width perfectly matching the processing range of the PU casting machine, the two sets of equipment form a complete automatic production solution for panel-type air filters and industrial filter elements, effectively improving overall production efficiency and guaranteeing consistent finished product quality.

Full-Automatic Integrated Casting System

Integrates material storage, constant-temperature stirring, precision pouring and automatic cleaning, realizing one-stop automatic PU sealing processing, reducing manual operation and improving production efficiency.

High-Precision Material Control

Imported metering pump with digital control ensures accurate A/B material ratio and stable discharge volume; fine-tunable reflux design minimizes raw material waste and guarantees uniform casting quality.

Wide Compatibility for Filter Shapes

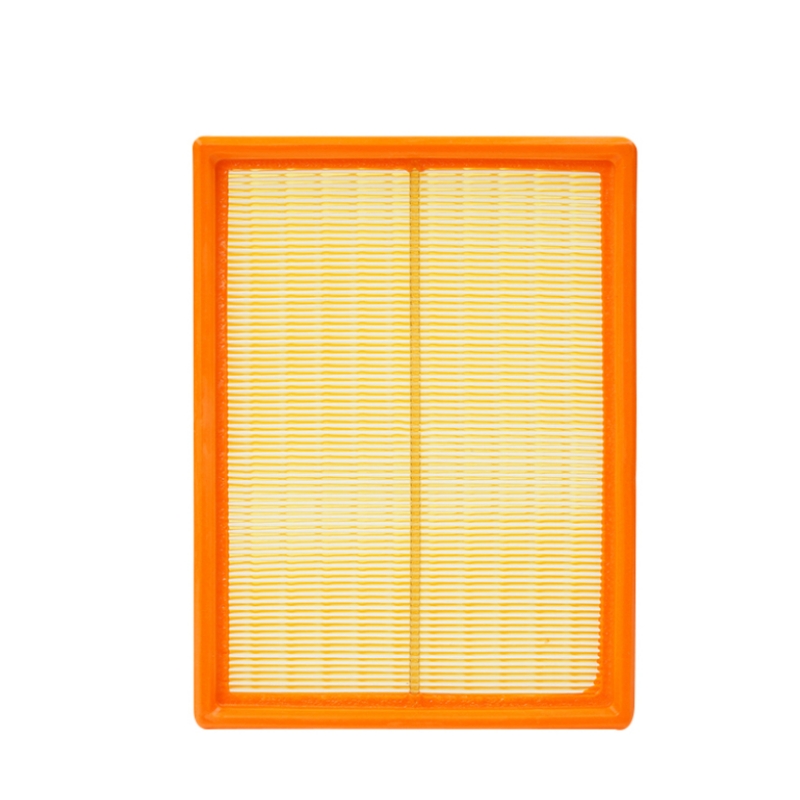

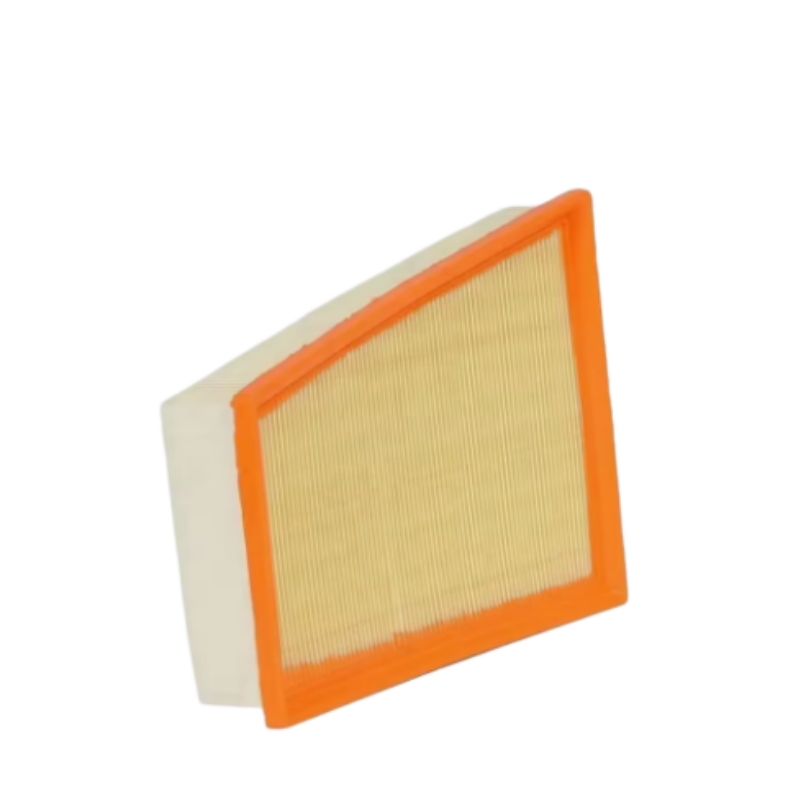

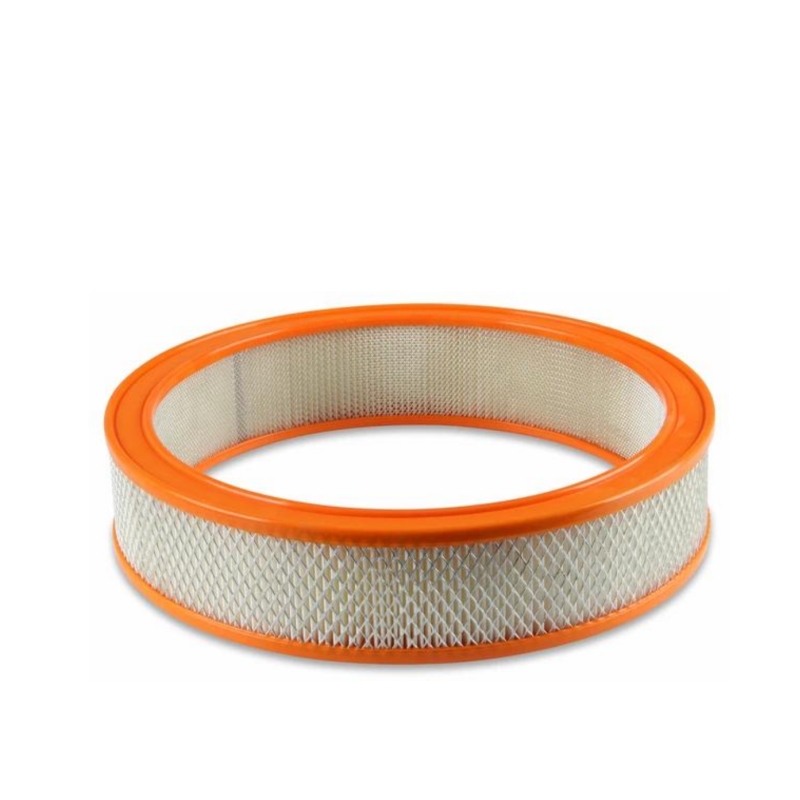

Supports automatic casting of round, square and special-shaped filter elements, with max. 350mm diameter for round cores and 400×300mm size for square cores, meeting diverse production demands.

Intelligent Constant Temperature System

Three-layer stainless steel sealed tank with automatic constant temperature control and stepless stirring adjustment, maintains stable material state and ensures consistent forming effect for long-time batch production.

1 Every machine is fully inspected and tested at factory before shipment.

2 12 months warranty period. Free repair and replacement for quality-caused defects, excluding improper operation, man-made damage and force majeure.

3 24/7 online & offline technical support. Professional reply within 2 working hours for operation, maintenance and troubleshooting.

4 Long-term supply of original spare parts at competitive prices, fast delivery to reduce production downtime.
