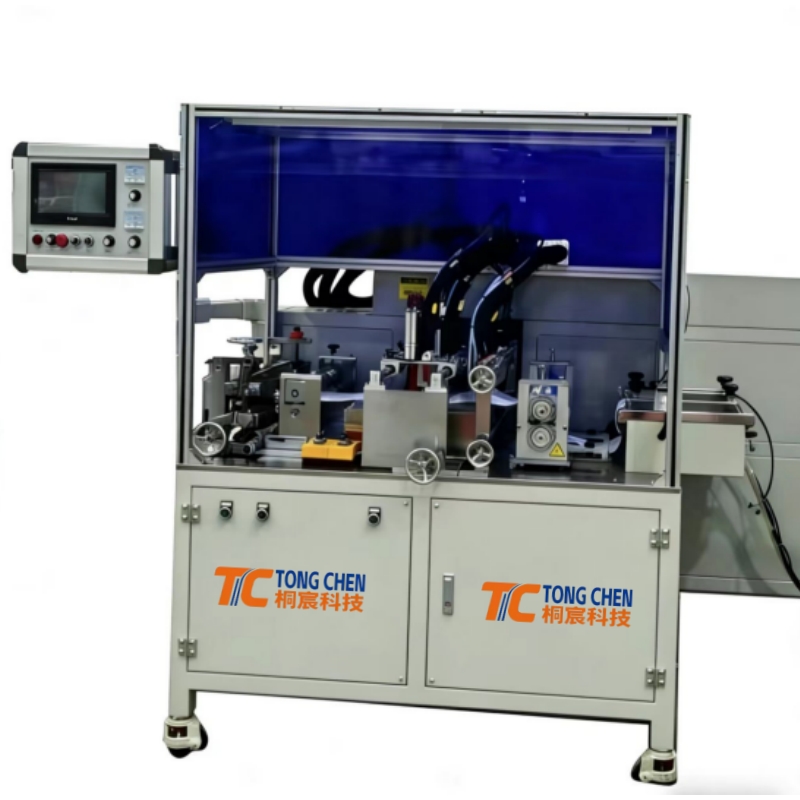

Factory Price Panel servo paper pleating production line

Name: Factory Price Panel servo paper pleating production line
Availability: InStock

The TCPG-350 is a fully automatic filter paper forming machine featuring advanced spray humidification and dual servo glue injection systems. Adopting premium Taiwan-brand core components and PLC touchscreen control, it supports adjustable folding height and stable 5–50m/min production speed. This high-precision, low-failure equipment ensures uniform paper forming for efficient industrial production.

Order(MOQ) :
1 set
Payment :
FOB/ CIF
Product Origin :
Bengbu city, Anhui Province
Shipping Port :
Shanghai
Lead Time :
15-30 days

Inquiry now

Machine Operation process :

Feeding Rack - Spray Humidification Device - Filter Paper Imprinting - Automatic Glue Injecting - Folding & Forming - Conveyor Belt

Automatic Filter Paper Processing Equipment

Technical parameters:

Model	TCPG-350
Paper Folding Height	20–60 mm
Maximum Filter Paper Width	90–320 mm
Production Speed	5–50 m/min
Conveyor Belt Speed	0–8 m/min
Hot melt glue machine capacity	10L
Total power consumption	9 kW
Compressed air supply (user-provided)	1 m³/min
Main motor power	1.1 kW
Conveyor motor power	0.55 kW
Glue injection servo motor power	2*400 kW
Glue machine power	6.4 kW
Operating air pressure	0.6MPa
Power supply voltage	380 V/50 Hz
Machine Weight	600 kg
Machine dimensions (LWH)	6200160001400mm

Configuration List

1. Motor configuration: Fully digital servo motors (Brand: Delta, Taiwan); three-phase motors (Brand: Huanxin, Taiwan).

2. Touchscreen Configuration: 7-inch touchscreen, Brand: Taiwan Weintek;

3. PLC Programmable Controller Configuration: Four-axis control unit, Brand: Taiwan Delta;

4. Frequency Inverter Configuration: Domestic brand Kerun;

5. General Electrical Components: Custom high-precision proximity switches, imported standard proximity switches, relays, and other small electrical components;

4. Mechanical Components: Shafts feature electroplated hard chrome and decorative chrome finishes; other parts undergo standard blackening treatment.

5. Glue Machine System: Consists of one 10KG glue machine, two independent glue hoses, and two glue guns.

6. Instrument Standard Parts Configuration: All instruments are installed rationally and designed for easy disassembly.

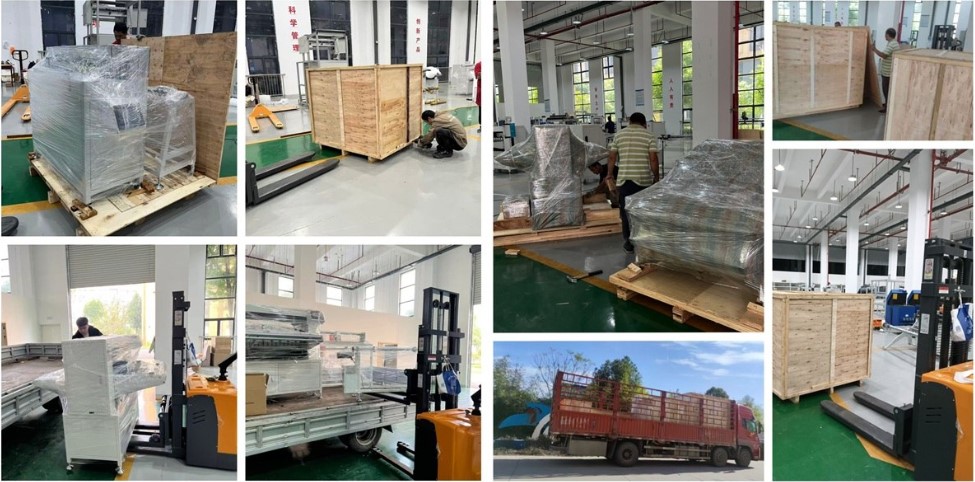

Package and Delivery

After-sale service

1. Warranty Service

12-month full machine warranty starts from the date of successful installation, commissioning and formal production acceptance.

2. Installation & Commissioning

Professional engineers provide on-site installation, wiring and full-function commissioning. All equipment parameters (folding height, production speed, gluing accuracy, corrugation flatness, etc.) will be calibrated to meet factory standards and customer production requirements.

3. Free Technical Training

On-site operation and maintenance training , covering full equipment operation process, parameter adjustment, multi-angle gluing setting, daily maintenance specifications, and common fault troubleshooting.

4. Fault Response & Maintenance

24-hour online after-sales support for remote fault diagnosis and quick solution of simple failures. For complex hardware failures, we provide priority on-site maintenance service to minimize production downtime losses.

5. Original Parts Supply

We stock full-range original spare parts for TCPG-350 equipment. Free parts replacement within warranty period. After warranty, all original parts are supplied at factory cost price to ensure equipment precision and service life.
