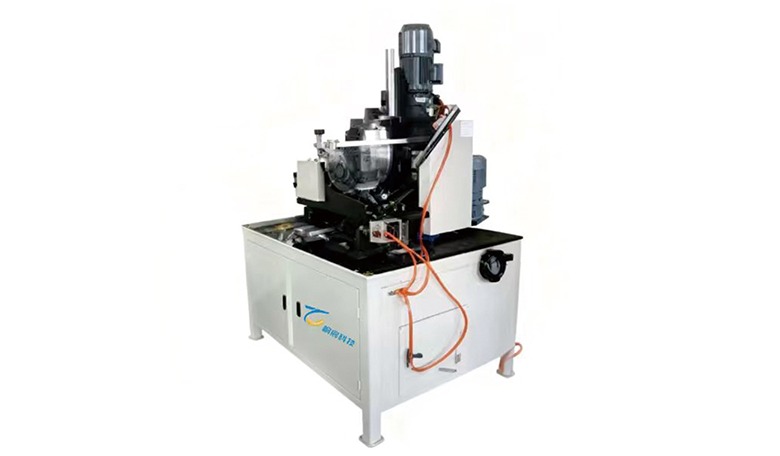

Filter Spiral Coiling Machine for Inner and Outer Layers

(1) The main unit utilizes pneumatic roll shearing for cutting, ensuring noise-free operation, smooth cut surfaces, and reliable safety.

(2) Variable-frequency speed control enables non-stop cutting, delivering precise and smooth cut edges.

(3) Adjustable molds facilitate easy modification and cost savings. Dual positioning ensures precise, uniform tube dimensions and stable, rapid production.

(4) Size adjustments (expansion/contraction) and angle realignment take approximately ten minutes with a straightforward process.

(5) The control circuit adopts 24V DC, which enhances operational safety.

(6) The equipment uses touchscreen digital control and automatically stores dimensional parameters, minimizing production complexity.

(7) This machine offers a wide range of producible tube diameters. A single unit can manufacture diamond mesh and perforated plates, meeting most manufacturers’ production requirements.

Feeding → Mesh flattening → Mesh edge folding → Forming through mold head → Flanging and hooking → Roller sealing → Cross-cutting → Finished product conveying and sorting

Automatic mesh coiling, forming, cutting, and trimming

Noise-free pneumatic roll shearing system

Variable-frequency speed control suitable for non-stop cutting

Adjustable mold system with dual positioning for precision

24V DC low-voltage safety control circuit

Touchscreen digital control with automatic parameter memory

Capable of producing both diamond mesh and perforated tubes

Wide production pipe diameter range: 80–500 mm

High automation reduces labor requirements

Smooth, accurate, and noise-free cutting performance

Fast size adjustment (approx. 10 minutes)

Stable tube forming with precise dimensional accuracy

Compatible with multiple metals such as galvanized sheet, stainless steel, and carbon steel

Optimized digital production with stored size parameters

Suitable for both inner and outer decorative filter mesh production

Interior and exterior decorative mesh for various filters

Diamond mesh tube forming

Perforated mesh tube production

Automotive filter mesh production

Industrial and HVAC filtration systems

Metal mesh cylinder manufacturing

Spiral-wound structural mesh components

High-quality components from trusted brands (Mitsubishi, Omron, SDPC)

Stable forming with dual-position mold design

Safe low-voltage 24V DC control system

Quick size and angle adjustments reduce downtime

Touchscreen digital control with automatic memory

Capable of producing a wide diameter range for multiple applications

Designed for long-term industrial production with high efficiency
