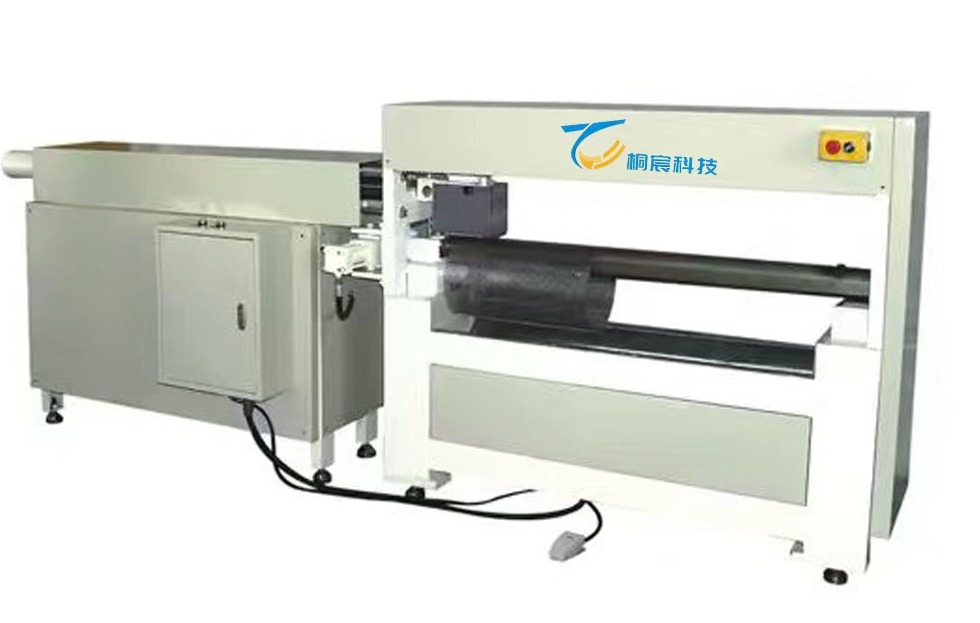

TC-1000 Heavy Duty Air Filter Wire Mesh Flattening Machine

The TC-1000 HDAF Wire Mesh Flattening Machine is a specialized industrial machine used to press and flatten the hooked wire mesh section of heavy-duty air filter (HDAF) elements. Designed for large filter sizes with heights up to 1000 mm and diameters ranging from 120–350 mm, this machine ensures uniform mesh structure for secure pleated filter wrapping and assembly.

Equipped with a powerful 1.5 kW motor, durable steel structure, and automated flattening mechanism, the TC-1000 delivers consistent performance at a production capacity of 5 pieces per minute. It is an essential machine for HDAF filter manufacturers seeking to improve product quality, assembly accuracy, and production efficiency.

Specialized for HDAF heavy-duty air filters

Efficient capacity of 5 pcs/min for mass production

Handles filter heights up to 1000 mm

Suitable for diameters 120–350 mm

Supports steel mesh thickness up to 1.2 mm

Equipped with a 1.5 kW motor for stable flattening

Heavy-duty frame for long service life

Consistent flattening results for improved assembly quality

Enhances filter structural integrity by ensuring flat mesh alignment

Improves assembly accuracy for subsequent production steps

Reduces manual work and operator fatigue

Stable mechanical design ideal for continuous manufacturing

Compatible with various HDAF filter sizes

Minimizes deformation and ensures uniform mesh compression

Low maintenance and easy operation

• Heavy-duty air filter production
• Truck & industrial vehicle filter manufacturing
• HDAF filter mesh forming and leveling
• Wire mesh flattening for cylindrical filters
• Pre-processing before filter wrapping and pleating
• OEM filter manufacturing plants

• Specialized expertise in HDAF production equipment
• Precision-engineered machine with stable performance
• Durable construction designed for heavy industrial use
• Fast processing speed improves overall productivity
• Technical support, installation guidance, and after-sales service
• Customizable solutions for various filter sizes and production needs
