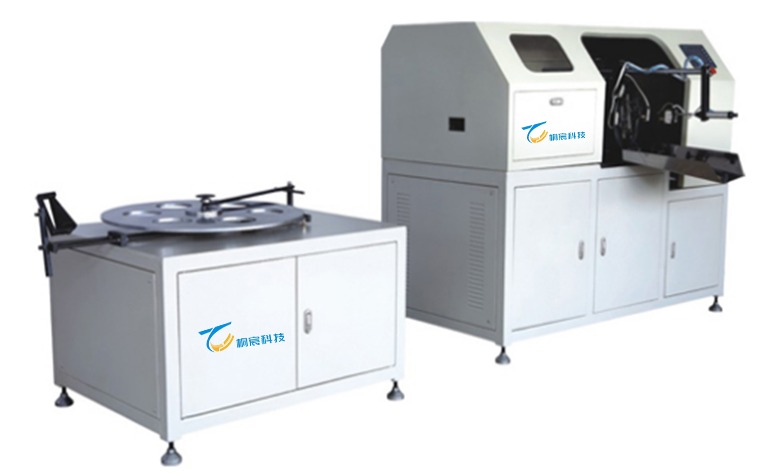

TCJY-75 Full-auto Spiral Center Tube Making Machine
The TCJY-75 Full-auto Spiral Center Tube Making Machine is engineered for producing spiral steel center tubes used in automotive oil filters, fuel filters, and industrial filtration systems. It offers fast production speed, stable performance, and flexible diameter and length adjustment to meet various customer requirements.
Built with advanced control technology, hydraulic power, and a user-friendly operating interface, this machine ensures high efficiency, consistent tube quality, and reduced production costs.
Order(MOQ) :
1Payment :
FOBProduct Origin :
Bengbu Anhui ChinaShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :
15-30 DaysThe TCJY-75 is a fully automatic spiral center tube manufacturing system designed for high-volume production. With a capacity of 20–30 pcs/min, adjustable diameters from Φ30–Φ75mm, and freely selectable tube length, this machine provides strong adaptability to different filter manufacturing needs.
Its hydraulic pressure drive offers powerful and stable performance, while computer control ensures precise processing, economical material use, and steady quality.
Main Features
The machine can easily change the diameter of screw tube in a short time.
Cut the needed length according to what the customer’s specifications.
Can adjust the clutch according to different thickness of the steel strip.
The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.
Adopts hydraulic pressure drive, which has strong power and good stable.
Advantages
High production speed: 20–30 pcs/min increases output efficiency
Flexible tube specifications: adjustable diameter and unlimited length
Precise and stable processing with hydraulic drive
Low material waste due to optimized computer control
Quick changeover reduces downtime
Ideal for automotive filter manufacturers
Technical Specifications
|
Item |
Specification |
|
Product capability |
20–30 pcs/min |
|
Diameter of the center tube |
Φ30–Φ75mm |
|
Length of center tube |
Freely |
|
Steel plate thickness |
0.25–0.32mm |
|
Motor power |
3kW |
|
Power supply |
380V/50HZ |
|
Working air pressure |
0.6MPa |
|
M/C weight |
800KG |
|
Size of main machine |
1600×800×1500mm (L×W×H) |
|
Size of paper de-coiler |
1200×800×800mm (L×W×H) |
Applications
The machine is technically used in manufacturing the center tubes of the auto oil and fuel filters.
Furthermore, the perforated/round hole spiral tube can be made as well.
Our Packing
Why Choose Us?
Professional manufacturer of filter production equipment
High reliability and stable operation for long-term industrial use
Advanced control technology ensuring consistent quality
Fast production speed with customizable tube dimensions
Strong hydraulic drive delivering powerful performance
Excellent cost-efficiency and low maintenance
