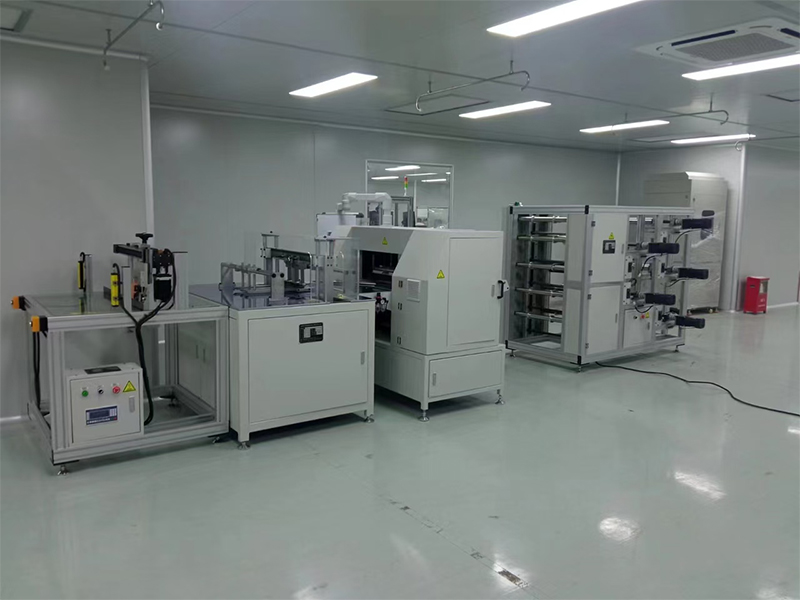

Multi-Layer Filter Paper Folding Production Line

Name: Multi-Layer Filter Paper Folding Production Line
Availability: InStock

The Multi-Layer Filter Paper Folding Production Line is a fully automated system designed for folding, shaping, and cutting various types of filter materials. Equipped with servo control, adjustable folding height, and multi-layer processing capability, it ensures high efficiency and precision for air filter manufacturing.

Order(MOQ) :
1
Payment :
FOB
Product Origin :
Bengbu Anhui China
Shipping Port :
Shanghai / Qingdao /Nanjing / Yiwu
Lead Time :
15-30 Days

Inquiry now

The Multi-Layer Material Paper Folding Production Line by BENGBU TONGCHEN AUTOMATION TECHNOLOGY Co., Ltd. is a next-generation air filter manufacturing solution engineered for high accuracy, stability, and productivity. Using full-servo electronic cam technology, this system supports 1–5 layers of filter materials, adjustable folding height, precise slitting, and smooth horizontal cutting.

With intelligent control, high-speed operation, and modular components, it enables seamless production of high-quality folded filter media for various filtration applications.

Main Features

Automatic Servo Paper Feeding with adjustable speed from 0.5–12 m/min
1–5 multi-layer folding capability, suitable for different filter material structures
Full-servo electronic cam control for precise folding angles & knife adjustments
High-speed folding up to 280 pieces/min, depending on folding height
Dual heating plates for stable shaping (0–260°C adjustable)
Vertical & horizontal cutting integration for efficient product output
Wide width compatibility up to 1000 mm
Touch screen + PLC control (INOVANCE brand) for easy setting and monitoring
Industrial-grade frame and components ensuring durability and long service life

Advantages

High Productivity – continuous servo feeding and fast folding speed
High Stability & Accuracy – electronic cam + synchronous belt structure
Multi-Material Compatibility – supports nonwoven, meltblown, composite, paper materials
Flexible Production – adjustable folding height, width, and layers
Reduced Labor Cost – fully automated forming and cutting process
Easy Operation – intuitive 10-inch touch screen
Durable Construction – heavy-duty steel frame, upgraded bearings, and plating treatment
Smart Control System – dot counting, auto height adjustment, angle adjustments

Technical Specifications

Automatic Paper Feeding Section		Paper Folding Machine		Vertical Cutting Machine		Horizontal Cutting Machine
Item	Specification	Item	Specification	Item	Specification	Item	Specification
Paper Feeding Speed	0.5 – 12 m/min (adjustable)	Max Product Width	1000 mm	Cutting Width	≤100–1000 mm	Cutting Width	20–1000 mm
Adjustable Paper Width	32 – 1000 mm	Folding Height	5 – 70 mm (varies with material)	Cutting Knives	4 knives (adjustable)	Working Air Pressure	0.6 MPa
Adjustable Layers	1 – 5 layers	Folding Speed	0 – 280 pcs/min	Motor Power	1.5 kW	Stepping Motor	0.73 kW
Max Roll Diameter	450 mm	Power Supply	380V / 50Hz	Working Air Pressure	0.6 MPa	Power Supply	220V / 50Hz
Power Supply	220V / 50Hz	Main Motor Power	0.75 kW × 2	Power Supply	380V / 50Hz	Machine Weight	220 kg
Feeding Motor	0.2 kW × 5	Lifting Motor Power	0.85 kW × 2	Machine Weight	580 kg	Dimensions	1200 × 1800 × 1500 mm
Air-Expanding Shaft	70 mm	Press Plate Motor	0.4 kW	Dimensions	1200 × 1900 × 1800 mm
Working Air Pressure	0.6 MPa	Pre-Heating Power	6 kW
Machine Weight	550 kg	Temperature Range	Room temp 0– 260°C
Dimensions	2800 × 1880 × 1500 mm	Working Air Pressure	0.6 MPa
		Machine Weight	850 kg
		Dimensions	1800 × 1900 × 1655 mm

Applications

This production line is ideal for manufacturing:

HVAC air filter material
Medium-efficiency & high-efficiency filter papers
Meltblown + nonwoven composite filter materials

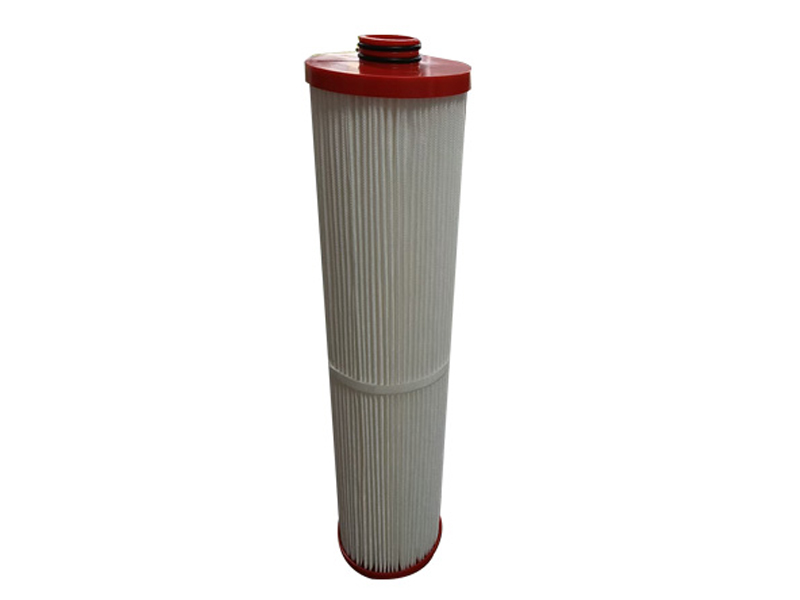

Automotive air filter elements
Industrial dust filtration media
Purification equipment filter paper
Multi-layer pleated filter material

Suitable for factories in: air purification, cleanroom systems, automotive parts, household appliances, industrial filtration, and environmental protection industries.
