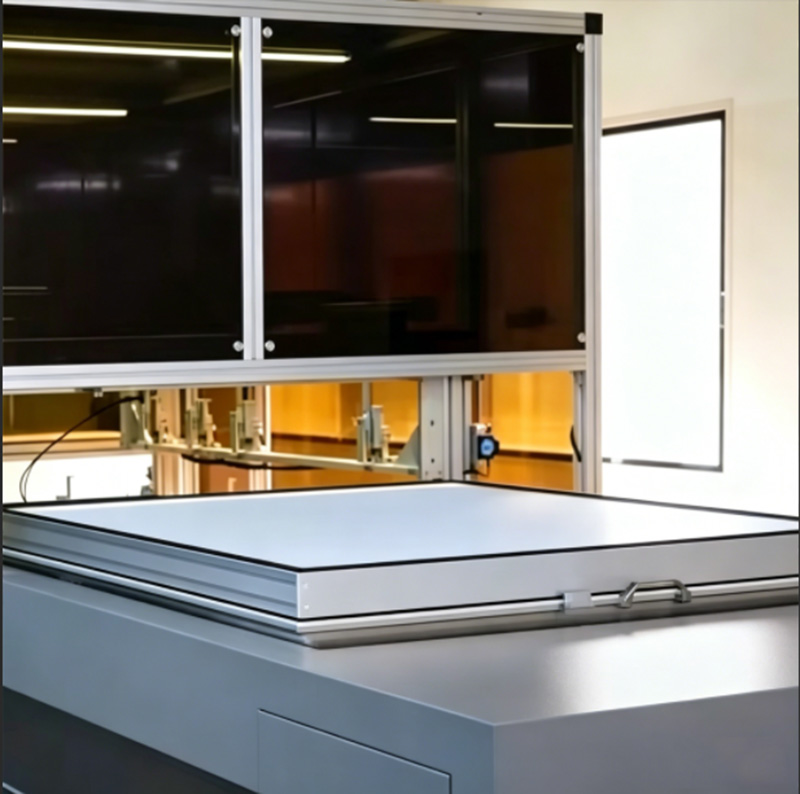

HEPA/ULPA Filter Scanning Test System (2025) – Leak Detection & Integrity Testing

Automated HEPA/ULPA Filter Certification System

HEPA/ULPA Filter Scanning Test System (2025) – Leak Detection & Integrity Testing

The 2025 HEPA/ULPA Filter Scanning Test System is a cutting-edge, automated inspection device designed for quality control (QC) and R&D of high-efficiency particulate air (HEPA) and ultra-low penetration air (ULPA) filters. Integrating aerosol photometer technology, leak testing, and integrity scanning, it ensures compliance with ISO 14644, EN 1822, GMP, and FDA standards.

Order(MOQ) :
1 set
Payment :
T/T
Product Origin :
AnHui China
Shipping Port :
ShangHai
Lead Time :
28
Weight :
900Kg

Inquiry now

Key Applications

● Industrial QC: Validates HEPA/ULPA filters for semiconductor cleanrooms, pharmaceutical facilities, and biotech labs.
● R&D Optimization: Tests new filter media designs for enhanced efficiency (up to 99.999% @ 0.1–0.3μm).
● Maintenance Checks: Monitors filter degradation in hospitals, data centers, and aerospace environments.
● Certification Testing: Meets ISO 14644-3, IEST RP-CC034, and EU GMP Annex 1 requirements.

Features & Benefits

✅ High-Precision Leak Detection:

0.1μm sensitivity via laser aerosol photometer.
Multi-point scanning for pinpointing leaks ≥0.01% of filter area.

✅ Automated Efficiency Testing:

Scans 24"×24" (610×610mm) to 48"×48" filters with adjustable fixtures.
Real-time MPPS (Most Penetrating Particle Size) analysis.

✅ Data-Driven Compliance:

Cloud-compatible software generates PDF/Excel reports with pass/fail thresholds.
ISO-compliant data logging for audits.

✅ User-Centric Design:

Touchscreen GUI with guided workflows.
Modular for portable or benchtop use.

Function & Description

Functions	Descriptions & Parameter
Filtration efficiency	85-99.9995%
Filter dimensions (max)	1220x1220x400mm
Air Flow	300-5000 m³/h, accuracy 3% F.S
Resistance	0-1000 Pa, accuracy 1% F.S
Leakage	Data and diagram, Re-scan by points
Filter Class	H10-U14
Filter Loading	Automatic loading and persion fixed
Filter adaptor switch	Within 60s
Clean Environment	Ensurance by H14 Calss FFU
Report	Standard EN 1822-4/5 (Support User nominated)
Operation system	CHINESE/ENGLISH

Company Profile

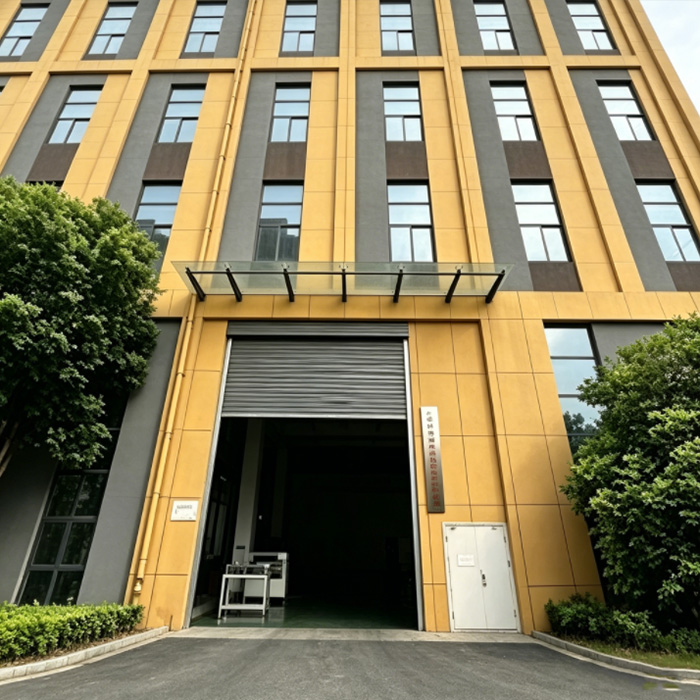

ABOUT US:

Established in 2011,Bengbu Tongchen Automation Technology Equipment CO.,LTD, is a specialized firm that integrates research, development, manufacturing, marketing and after-sales service for filtration equipment manufacturing equipment. Our primary product offerings encompass a range of advanced machinery, including but not limited to fully automated reciprocating paper folding production lines, fully automated PP intermittent glue injection and wave reception production lines, fully automated paper frame gluing production lines.
