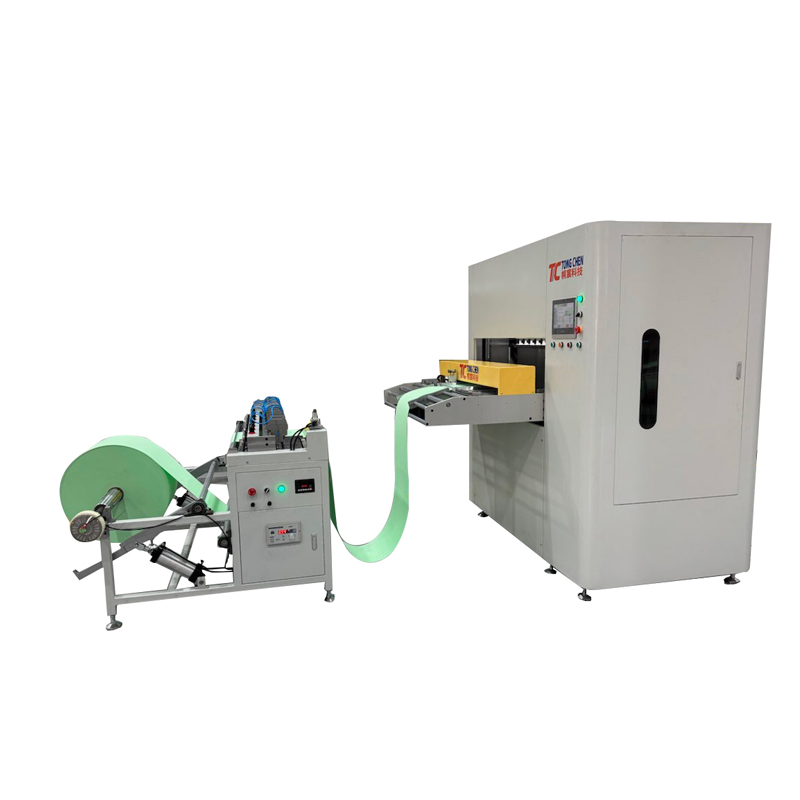

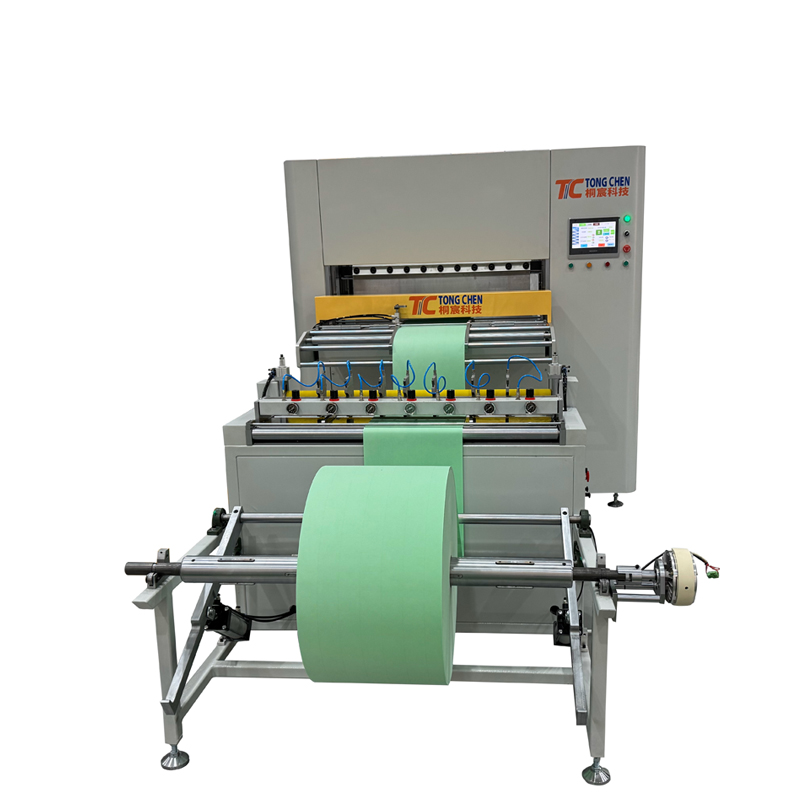

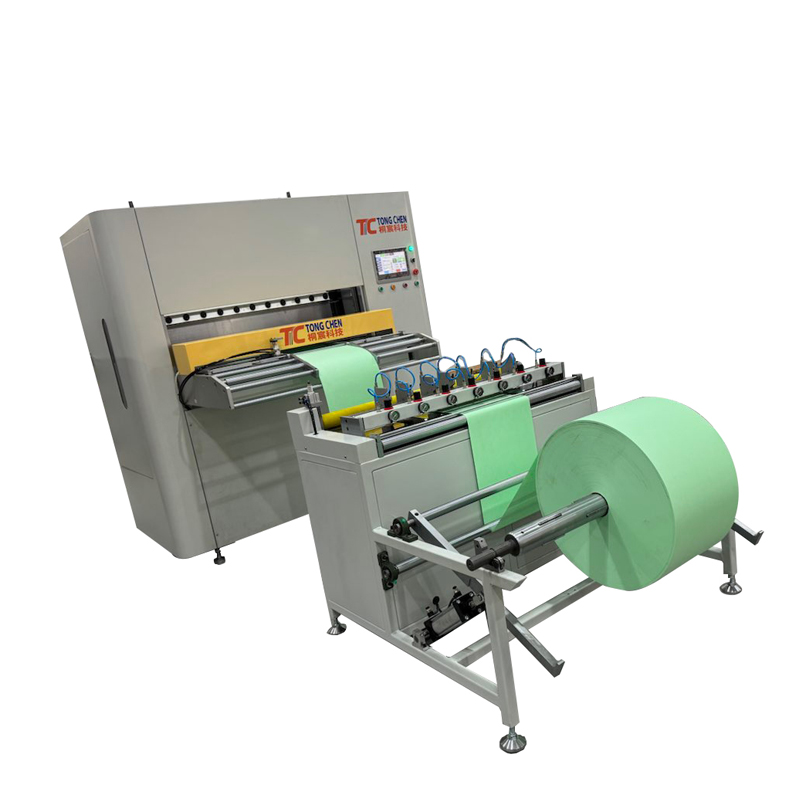

300mm Pleat Height Fully Automatic Servo Motor Pleating Production Line (Seventh Generation)
The seventh-generation fully automatic servo motor pleating production line integrates automatic feeding, pre-cutting, counting, and folding into one continuous process. It delivers high-speed, precise, and efficient pleating for various filter materials.
Featuring adjustable speed and folding height, intelligent temperature control, and a user-friendly digital interface, this machine ensures stable performance and consistent quality.
Widely used in automotive filters, air purification, and industrial filtration applications.
Order(MOQ) :
1Payment :
FOBProduct Origin :
China Anhui BengbuShipping Port :
Shanghai / Qingdao /Nanjing / YiwuLead Time :
15DaysThe seventh-generation fully automatic servo motor pleating production line is designed for high-speed, precise, and efficient pleating of filter paper. It integrates automatic feeding, pre-cutting, counting, and folding functions into one continuous process, significantly improving production efficiency and ensuring consistent product quality.
This machine is widely used in automotive filters, air purification filters, and industrial filtration materials.
Main Components
1. Automatic Paper Feeding Rack
2. Pre-cutting Paper Conveying Machine
3. Automatic Counter
4. Filter Paper Folding Machine
Technical Parameters
| Pre-cutting Paper Conveying Machine | Folding Machine (Model: 55-850-6 Type) | |||
| Item | Specification | Item | Specification | |
| Paper Conveying Speed | 0.5 m/min – 25 m/min (adjustable) | Maximum Product Width | 850 mm | |
| Adjustable Width of Filter Paper | 25 – 1050 mm | Adjustable Folding Height | 20-300 mm (depending on material) | |
| Power Supply Voltage | 220V / 50Hz | Folding Speed | 0 – 280 folds/min (stepless adjustable) | |
| Motor Power | 0.55 kW | Power Supply Voltage | 380V / 50Hz | |
| Working Air Pressure | 0.6 Mpa | Main Motor Power | 1.5 kW | |
| Machine Weight | 250 kg | Lifting Motor Power | 0.4 kW | |
| Dimensions (L × W × H) | 1280 × 1100 × 1200 mm | Preheating Power | 6 kW | |
| Temperature Control Range | Normal temperature – 260°C | |||
| Working Air Pressure | 0.6 Mpa | |||
| Machine Weight | 450 kg | |||
| Dimensions (L × W × H) | 1800 × 1900 × 1650 mm | |||
Key Features & Advantages
Applications
Optional Configurations
Our Packing
Why Choose Us?
Bengbu Tongchen Automation Technology Co., Ltd. is a leading manufacturer specializing in filter production equipment. With years of engineering experience, advanced manufacturing technology, and a commitment to innovation, we provide customized automation solutions that meet the evolving needs of the filtration industry.
By choosing Tongchen Automation, you benefit from:
Reliable, high-performance equipment with proven stability
Professional technical support and after-sales service
Continuous innovation and product development
Comprehensive solutions for complete filter production lines
