Semi-auto High-Speed Pleating and Setting Machine System for Filter Production TCCZ55-600-2

Our Semi-auto High-Speed Pleating and Setting Machine System for Filter Production TCCZ55-600-2 employs advanced automation technology to precisely fold and shape filter paper, ensuring it achieves ideal strength and stability. The equipment features high-efficiency production capacity with automatic adjustment of folding and heating parameters to accommodate diverse filter product requirements. Through an intelligent control system, it monitors the production process in real time, enhancing product consistency and quality stability while reducing labor costs.

• The paper machine features an infrared monitoring system to synchronize paper feed speed with the folding machine's filter paper processing speed.
• The folding mechanism employs alternating upper and lower blades to achieve precise folding. Adjustable blade spacing accommodates various fold heights, ensuring consistent dimensional accuracy and flatness.
• Filter paper undergoes automatic punching, counting, folding processing, and preheating/setting on the folding machine.
• This machine also folds wire cloth and non-woven fabrics for hydraulic filters and supports multi-layer folding.

• Fully automated workflow from slitting to pleating
• Infrared synchronization ensures consistent marking and slitting
• Precision marking and pleating with automatic blade adjustment
• Supports wide pleating ranges (8–55 mm)
• Excellent for paper, wire mesh, and non-woven folding
• Stable performance for high-volume industrial production
• Can pleat “M-type” shapes (custom option)
• Customizable width and pleat heights for various filter industries

1. Automatic Paper Unwinder

2. Pre-Cutting Paper Feeder

3. Automatic Counter

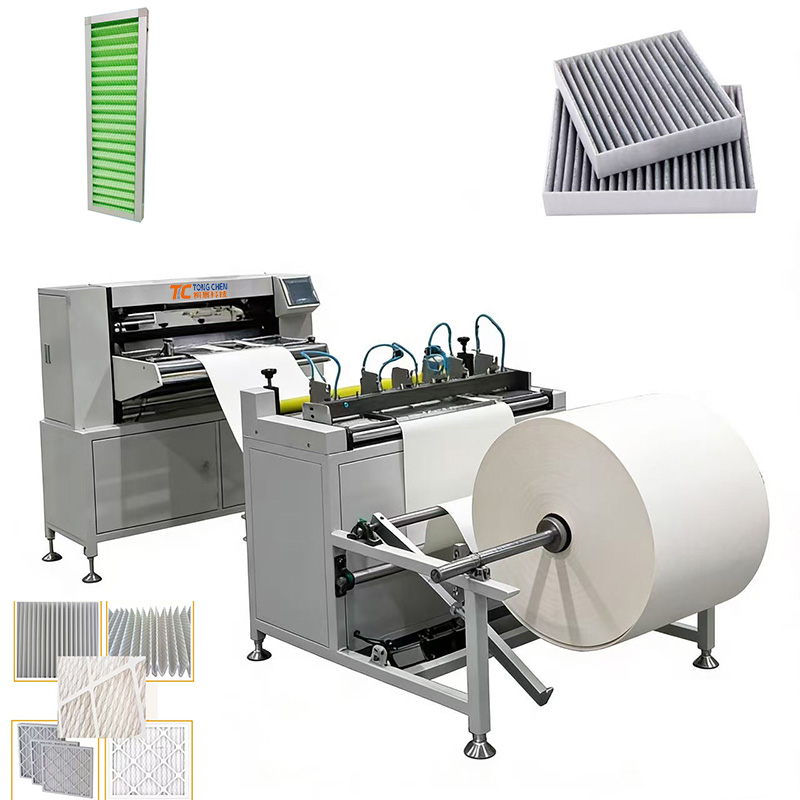

4. Filter Paper Folder (equipped with preheating setting plate and computer control box on the main unit).

The production line is applied to auto Tri-filter industry, hydraulic pressure industry, purification industry and water treatment industry, etc and suitable for automotive air/fuel/oil filter industries, hydraulic industries, purification industries, water treatment, and related sectors.

Furthermore, we can customize the paper-pleating production line of different specifications (machine wider and pleat higher. This pleating machine can pleat "M" type as well.)

Full integration of slitting, marking, counting, and pleating

Computerized control with high precision at every stage

Reliable mechanical structure for long-term industrial use

Automatic synchronization system for consistent quality

Supports multi-layer folding and diverse filter materials

Adjustable pleat height and customizable production line width

Optional “M-type” pleating capability

High production efficiency suitable for mass manufacturing
