Customizable air filter pleating equipment with servo motor TONGCHEN

Automatic glue applicator machine for air filter pleated panels

Customizable air filter pleating equipment with servo motor TONGCHEN

This advanced air filter pleating machine is designed for precision and flexibility in manufacturing high-efficiency HVAC, HEPA, and automotive filters. Equipped with a high-performance servo motor, it ensures accurate pleat spacing, consistent folding quality, and adjustable production speeds to meet diverse industry standards.

Order(MOQ) :
1
Payment :
FOB
Product Origin :
Bengbu Anhui China
Shipping Port :
Shanghai / Qingdao / Nanjing / Yiwu
Lead Time :
15-30Days
Weight :
350KG

Inquiry now

✔ Fully Customizable – Adjust pleat height, depth, and pattern for various filter types.

✔ Servo-Driven Technology – Delivers smooth operation, energy efficiency, and minimal maintenance.

✔ User-Friendly Interface – Simple programming for quick setup and batch changes.

✔ Durable Construction – Robust frame and components for long-term industrial use.

Ideal for filter manufacturers seeking automation, repeatability, and scalability in production. Compatible with materials like fiberglass, synthetic media, and activated carbon.

Technical Parameters

Folding Machine Specification

Parameter	Specification
Maximum product width	1300mm
Adjustable folding height range	4~300mm (depending on materials)
Folding speed	0~280 folds/min (depending on folding height)
Power supply voltage	380V/50Hz
Motor power	Main motor 1.9kw, lifting motor 0.4KW
Preheating power	6kw
Temperature control range	Room temperature~200℃
Working air pressure	0.6Mpa
Machine weight	350kg
Overall dimensions	1800×1500×1650mm (L×W×H)

Key Features

Knife-Type Filter Pleating Machine

High-Precision Pleating Technology: Utilizes knife-edge pleating mechanism to produce sharp, uniform folds with consistent depth and spacing (4–300mm adjustable). Ensures optimal filtration performance for HEPA/ULPA, automotive, and industrial filters.

Fully Adjustable Parameters

Customizable pleat height, pitch, and count via PLC/touchscreen interface, enabling rapid changeovers for diverse filter specifications (e.g., PM2.5, VOCs). Supports single or multi-layer media with ±0.1mm tolerance.

Robust Construction & Reliability

Hardened alloy steel/Tungsten carbide blades for extended durability in 24/7 operation. Rigid frame with anti-vibration design maintains pleating accuracy (<±0.1mm) at high speeds (30–120 pleats/min).

Energy Efficiency & Low Maintenance

Servo-driven system reduces power consumption by 30% compared to pneumatic alternatives. Modular blade assembly enables quick replacement and cleaning, minimizing downtime.

Application Scope

● Medical mask filter layers, HVAC filters, automotive cabin air filters, industrial dust collectors.
● No material deformation – Ideal for dense/high-basis-weight media.
● Higher effective filtration area – Sharper folds maximize dust-holding capacity.

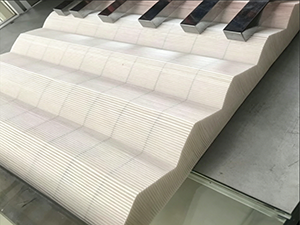

High-speed automatic air filter pleating machine for HVAC systems Application diagram

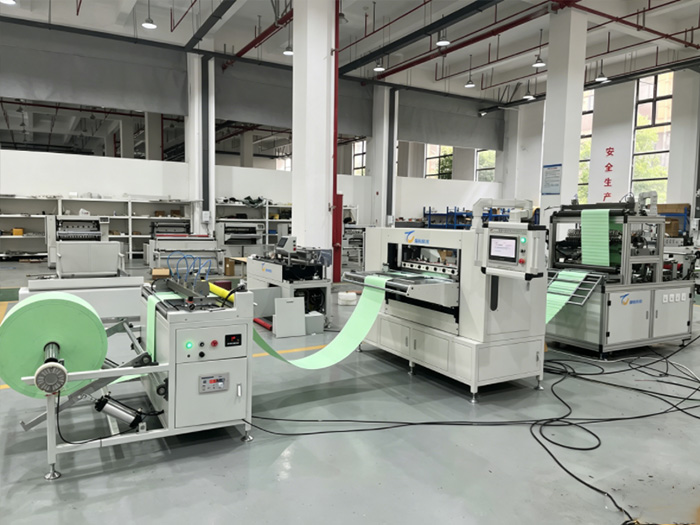

Fully automatic servo blade folding and gluing production line

We focus on product quality and continuously improve. We are motivated to be the best supplier of your laboratory and industrial filtration equipment.

Why Choose Us?

Bengbu Tongchen Automation Technology Co., Ltd. specializes in the design and production of filter manufacturing equipment. With advanced engineering and a focus on quality, we provide efficient, precise, and reliable automation solutions.

Our machines are widely used in HEPA filter, automotive filter, and industrial filtration production lines, delivering proven performance for customers worldwide.

Looking for a Customized Solution?

With 10+ years of engineering expertise, we provide highly stable, fully customized automation equipment. Tell us your specific requirements in the message board below, and our engineers will provide an accurate layout and quote within 24 hours.
