High-Precision Special-Shaped Cabin Air Filter Corner Cutting Machine for Automotive AC Filter Production

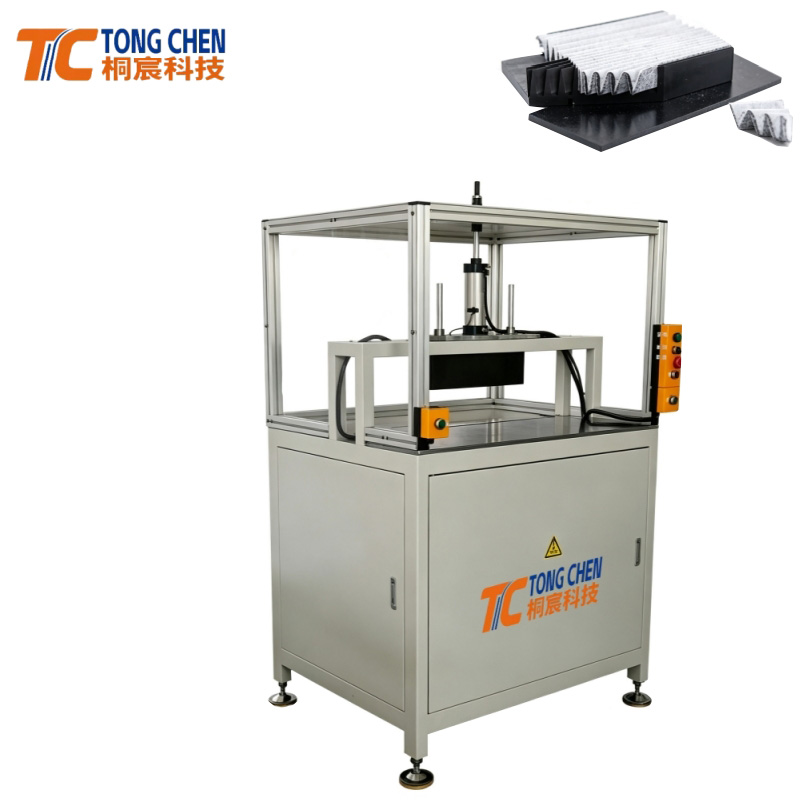

Special-Shaped Air Conditioner Filter Element Corner Cutting Machine

High-Precision Special-Shaped Cabin Air Filter Corner Cutting Machine for Automotive AC Filter Production

The TCQJ-300 Corner Cutting Machine is a precision device specially designed for the accurate and efficient cutting of special-shaped air conditioner filter elements. It easily handles filter elements of any shape — delivering a clean, perfect cut every time — while significantly improving production efficiency and reducing labor costs.

Order(MOQ) :
1 set
Payment :
T/T
Product Origin :
Bengbu, Anhui, China
Shipping Port :
Shanghai
Lead Time :
10–20 working days
Weight :
200 kg

Inquiry now

Product Details

The TCQJ-300 adopts advanced cutting technology to ensure precise cuts that fit perfectly into any air conditioning system. One of the machine’s key features is its ability to process special-shaped filter elements. Conventional cutting machines often struggle to achieve the ideal shape accuracy required for these special filters, while the TCQJ-300 handles any shape with ease and delivers a perfect cut every time. Beyond precision, the machine is also highly efficient. Its advanced cutting mechanism ensures fast and seamless cutting, which improves production efficiency and reduces labor costs — saving considerable time and money for businesses in the air conditioning maintenance and filter manufacturing industry. In addition, the machine is designed with user-friendliness in mind. Its intuitive interface and easy-to-use controls allow operators to get started quickly, minimizing the need for extensive training. This user-friendly design ensures the machine integrates smoothly into any production line without disrupting existing operations.

Main Features

1. High Precision Cutting — Advanced cutting technology ensures accurate cuts that perfectly match special-shaped filter elements.

2. Handles Any Special Shape — Unlike traditional cutters that struggle with irregular shapes, the machine easily processes filter elements of any shape.

3. High Efficiency — Fast and seamless cutting boosts production efficiency and reduces labor costs.

4. User-Friendly Operation — Intuitive interface and easy-to-use controls minimize training requirements.

5. Easy Integration — Designed to integrate smoothly into existing filter production lines without disrupting operations.

Technical Parameters

Parameter	Specification
Production capacity	1.5 m/min
Max cutting width	500 mm
Max cutting length	500 mm
Filter paper thickness	3–100 mm
Motor power	1.1 kW
Power supply voltage	380V / 50Hz
Machine weight	200 kg
Dimensions (L × W × H)	800 × 800 × 1200 mm

Working Principle

The TCQJ-300 operates by feeding the special-shaped air conditioner filter element into the cutting section, where the advanced cutting mechanism precisely cuts the filter material to the required shape. The system maintains a stable feed rate and accurate cutting action, ensuring that filter elements of any shape are cleanly and evenly processed with a perfect result every time. The adjustable parameters allow operators to control the processing dimensions and speed according to different filter specifications, providing flexibility for diverse production requirements.
